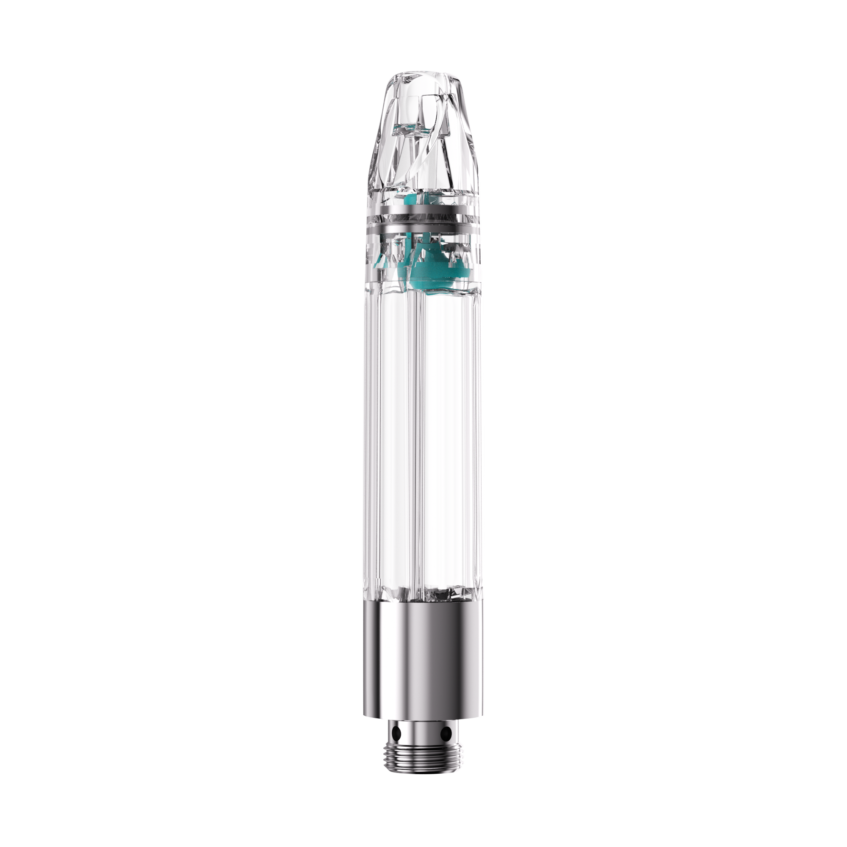

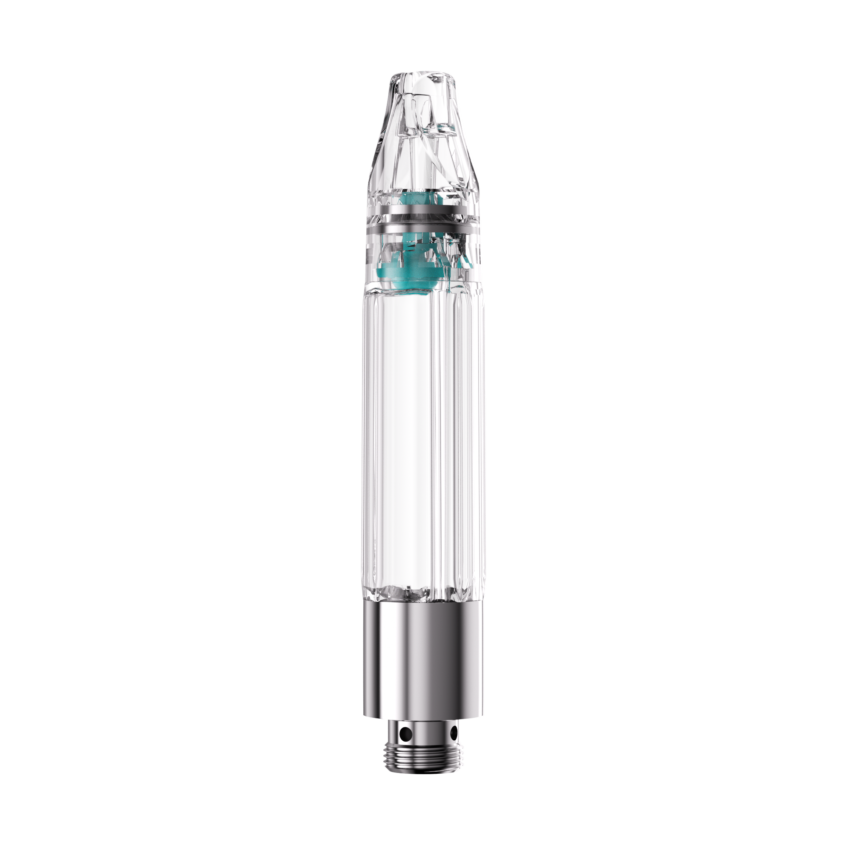

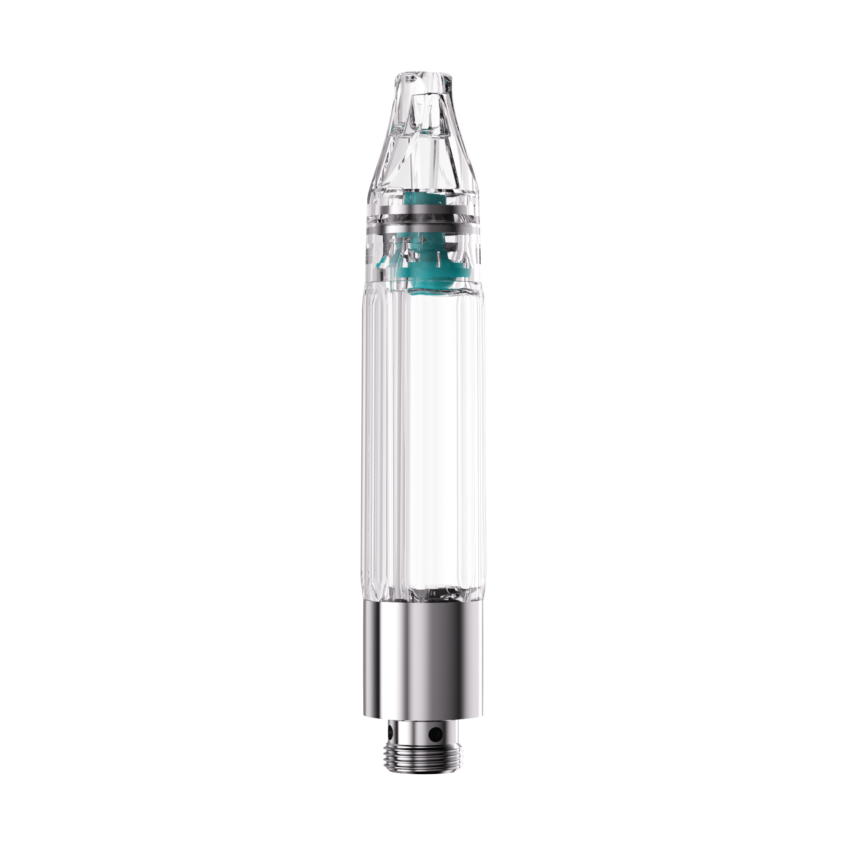

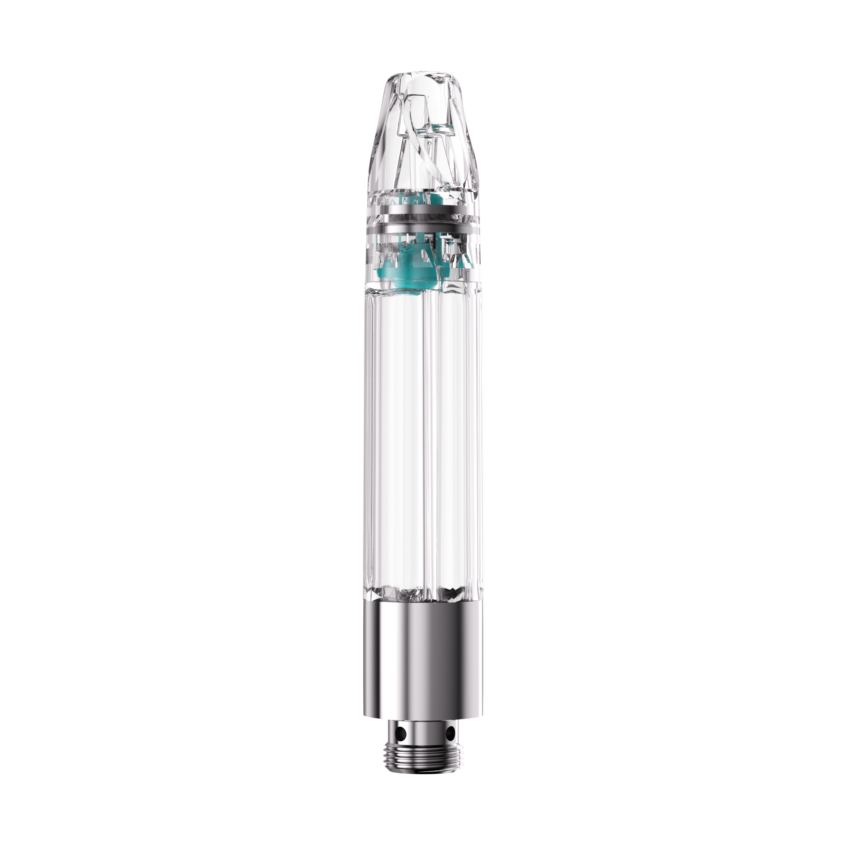

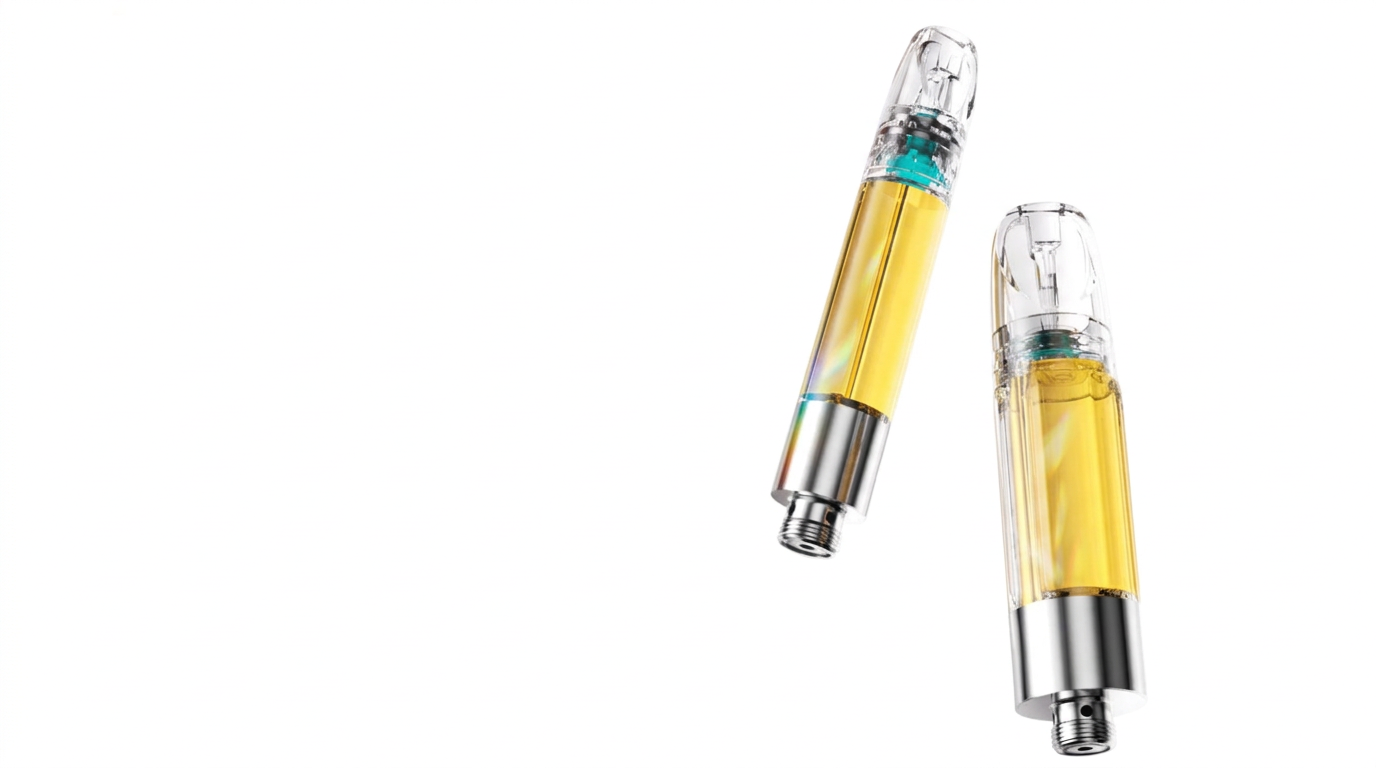

Diama pairs a faceted transparent reservoir with CCELL 3.0 heating and a 510 connection. Slim, wide and larger-capacity catalog versions must be specified separately.

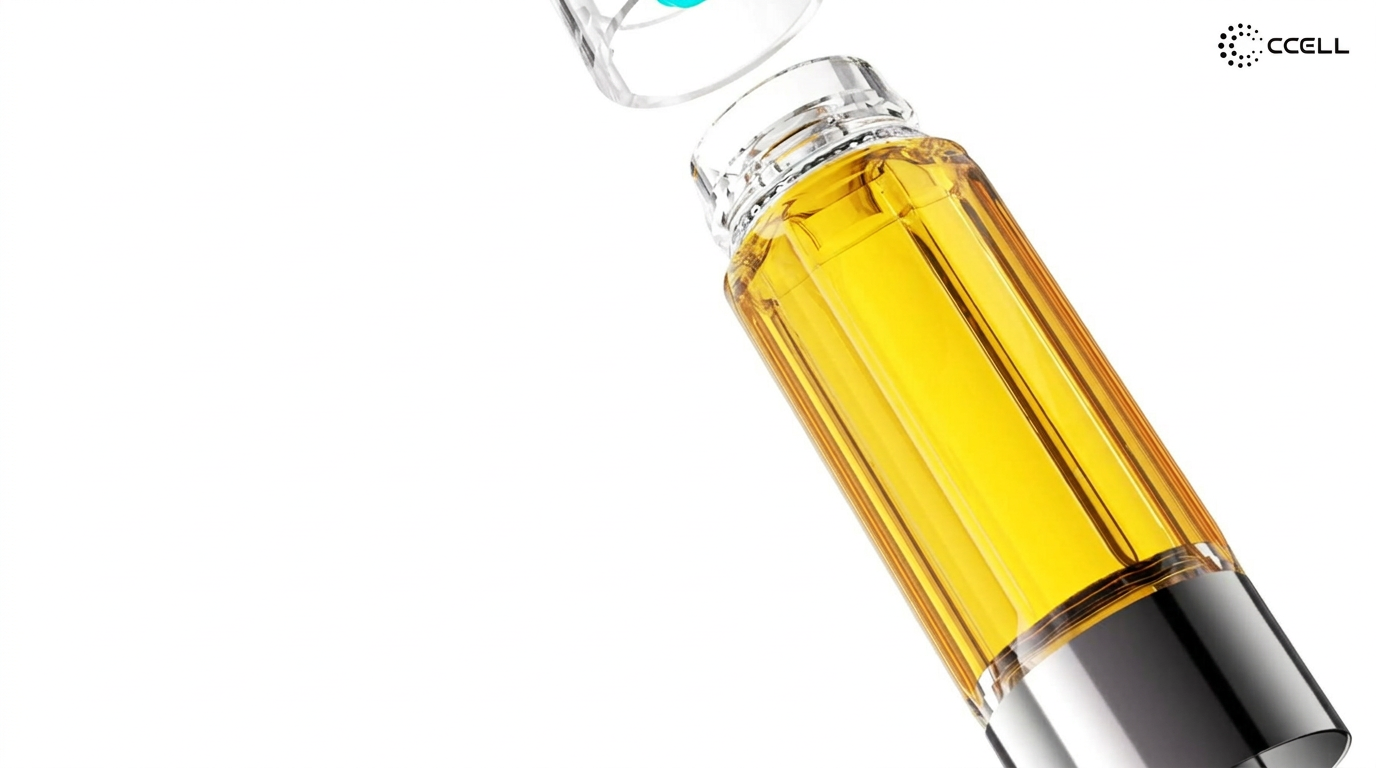

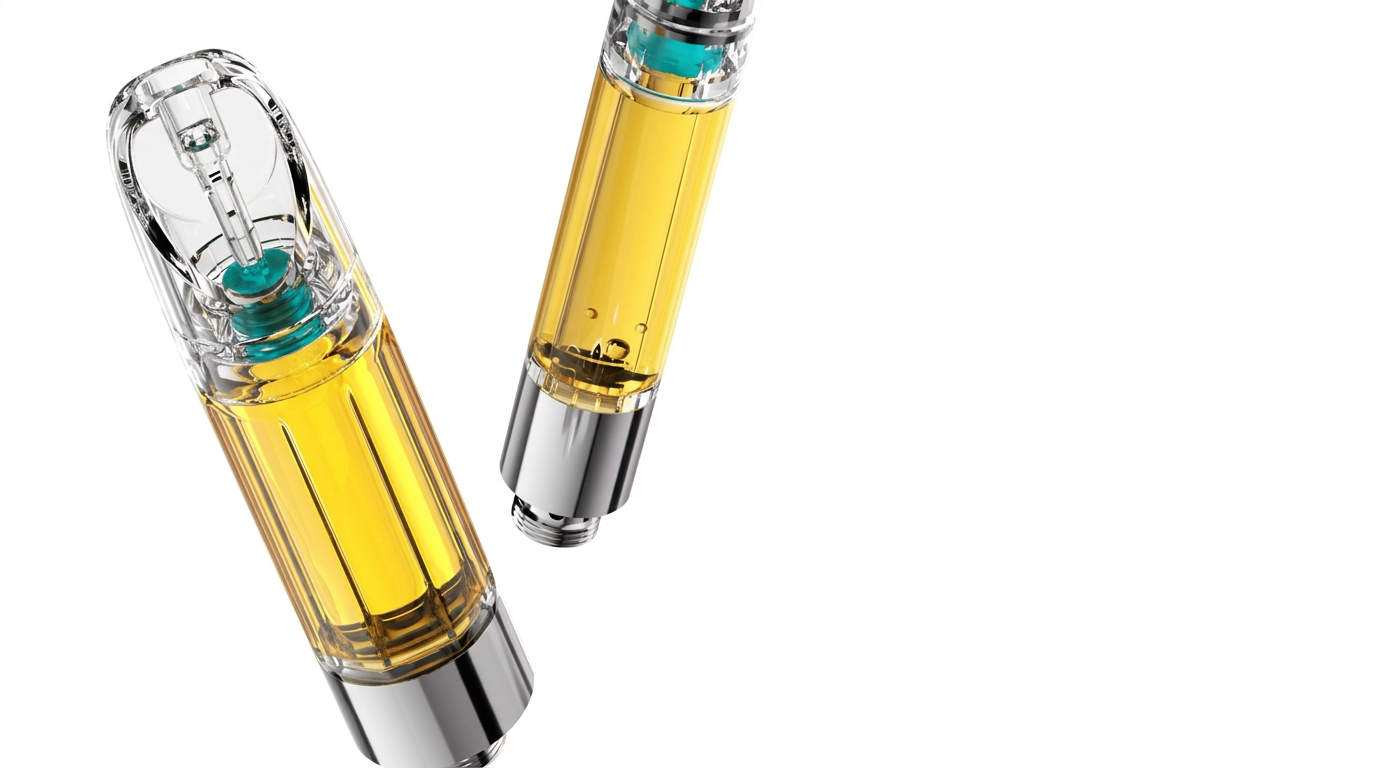

Diama’s angular tank gives the cartridge its gem-like appearance without a conventional center post.
Use a compatible 510 battery and confirm physical clearance for the selected cartridge diameter.
02 / THE CORE OF THE EXPERIENCE

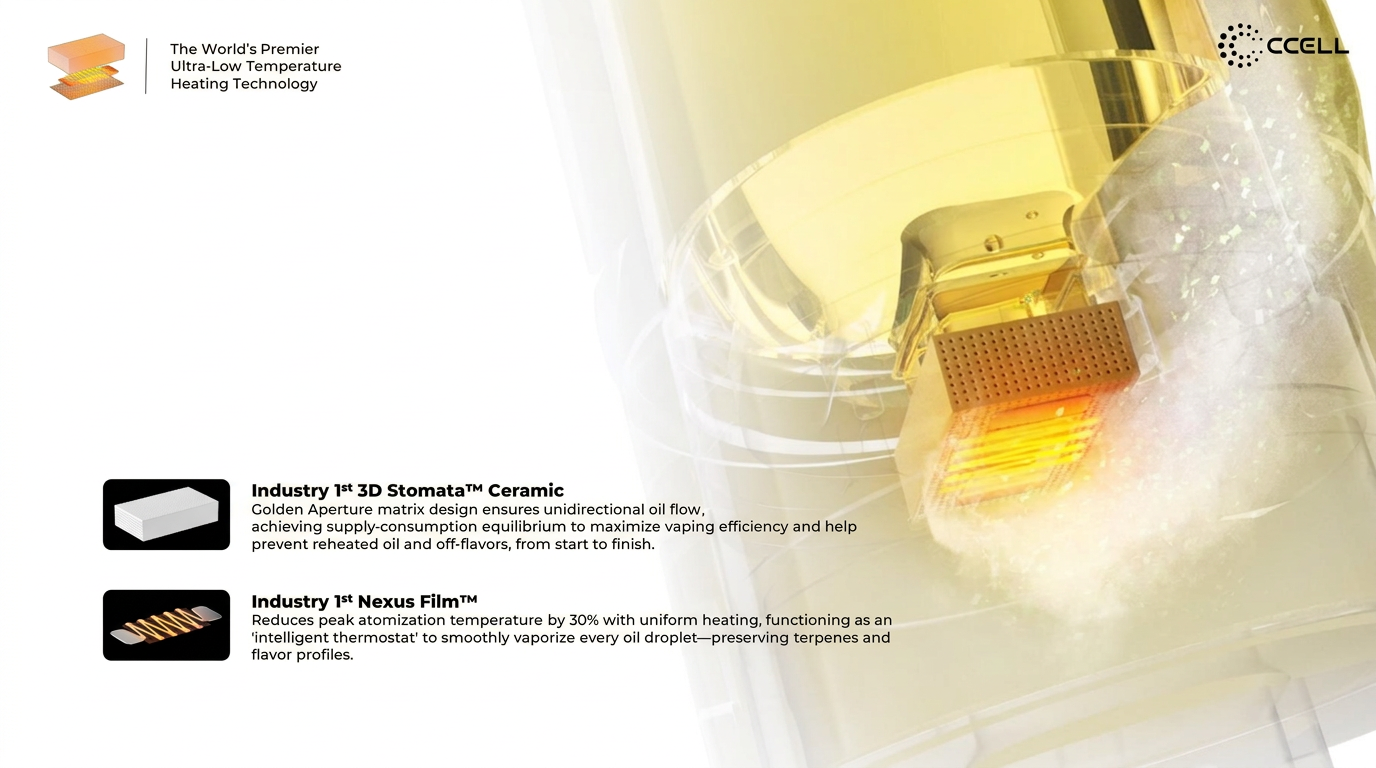

CCELL 3.0 Bio-Heating brings a porous ceramic structure and a heating film together. Oil delivery and heat distribution are designed as a system.
3D Stomata™ CeramicAn interconnected porous structure designed to guide oil toward the heating surface.
Nexus Film™A heating film designed for even heat distribution across the ceramic interface.
Cotton-free heating coreA ceramic-based platform used in a postless reservoir design.
CCELL factory illustration: Golden Nexus Film heating structure with porous ceramic
CCELL factory illustration: Oil moving through the porous ceramic structure
CCELL factory illustration: Heating structure integrated with porous ceramic
CCELL factory illustration: White porous ceramic heating core with vapor
CCELL factory illustration: Heating core within a transparent postless tank; platform illustration, not this device
Platform illustrations explain the heating principle, not this model’s exact internal geometry. Performance depends on formulation, device configuration, filling and use conditions; no platform description guarantees against leaks, clogs or burnt taste.
Check this product’s capacity and configuration separately from other models in the family.

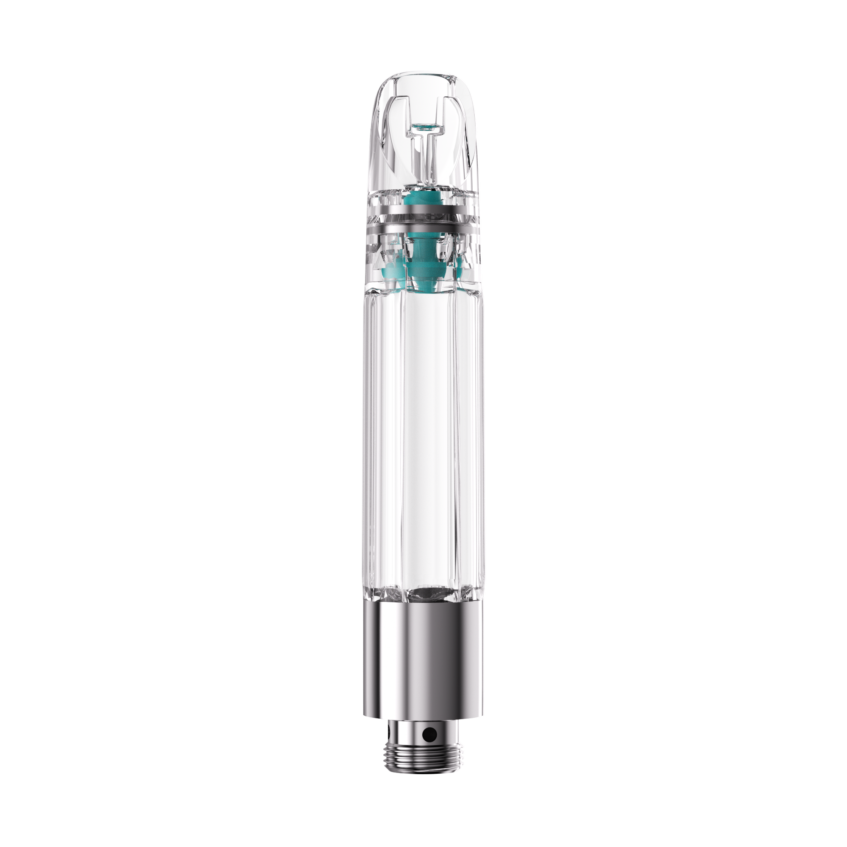

Diama 1.0 mL
Product rendering is not to scale.
Product
Diama 1.0 mL
Reservoir capacity
1.0 mL
Heating platform
CCELL 3.0 Bio-Heating
Tank design
Postless · faceted tank
Tank material
BPA-free PA housing
Dimensions · diameter × height
Ø11 × 59.9 mm
Resistance
1.3 Ω ± 0.15 Ω
Connection
510 thread · separate compatible battery required
Ordering formats
Use the existing selector above for this product’s available pack sizes and current tier prices.
The factory filling sequence uses a reservoir tray and deflector, followed by mouthpiece alignment and machine capping. Confirm the exact model’s fixture.
Place the preloaded reservoir tray on the baseboard and add the deflector.
Use the correct capacity and formulation-specific filling conditions.
Set the mouthpiece tray on the deflector and gently tamp into alignment.
Use the factory-approved setup for this exact revision.
Trial the exact device, formulation, tooling and storage conditions before committing to a full production run.
The launch sheet does not specify a capping force. Diama’s OEM drawing and specification page disagree on some dimensions; confirm the current mechanical drawing before tooling or packaging. The two generic 2.0 mL catalog records also need revision confirmation.
05 / YOUR BRAND, YOUR CONFIGURATION

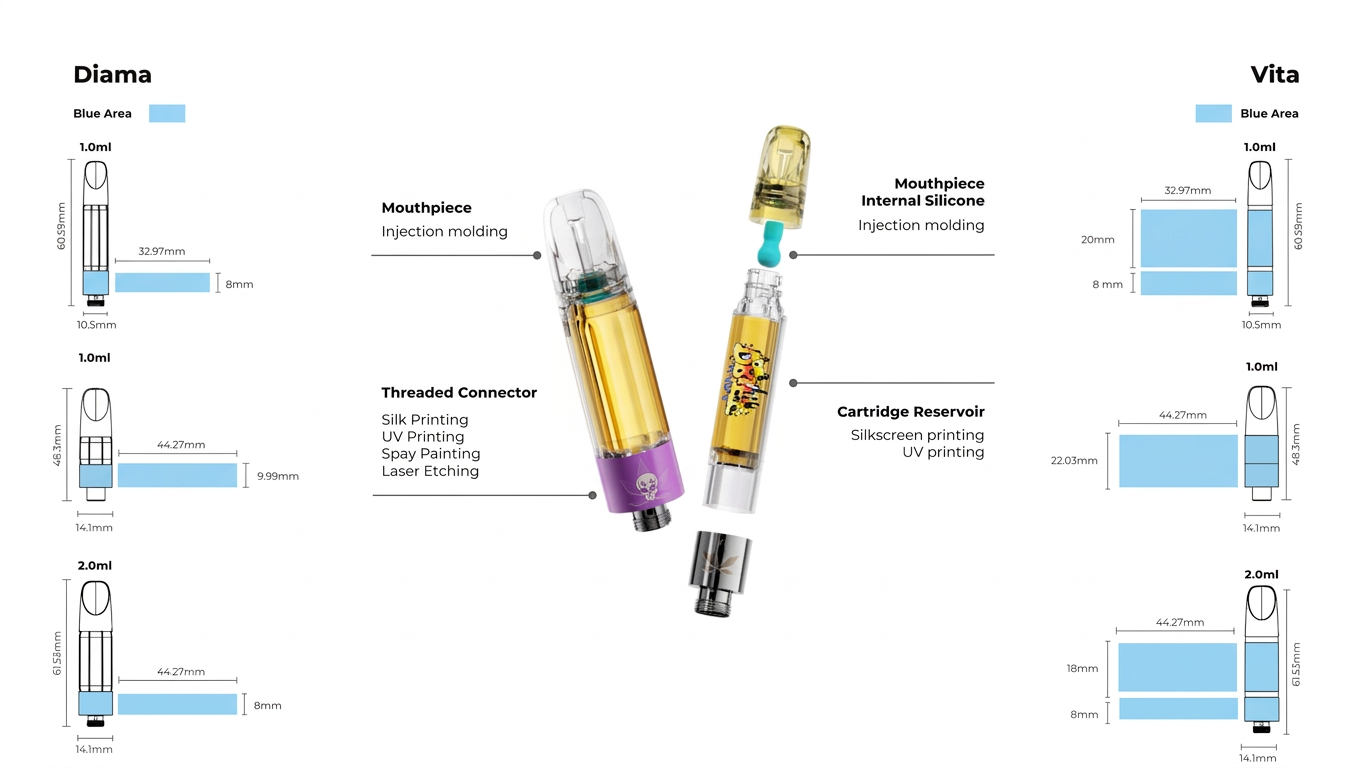

Left: Diama. Right: Vita. Use Diama’s own connector and decoration zones; the drawing is an artwork reference, not a confirmed mechanical revision.
Color & finishChoose the visual direction, then confirm available materials and finishes for this model.
Logo & decorationPrepare artwork against the correct factory decoration areas and capacity.
Production approvalConfirm minimum quantities, lead time and samples before placing a custom order.
Original factory customization reference.Decoration areas and examples from the CCELL launch material.
Factory color and branding examples are not stocked choices or a production proof. Ask us for the current drawing and print areas before you finalize artwork. Hardware is supplied empty.
No. Diama is a 510 cartridge and requires a separate compatible battery. Check diameter and clearance before choosing an enclosed battery.
No. It is a catalog format name. The factory specification lists 14.1 mm for the wide 1.0 mL and 14.8 mm for the wide 2.0 mL Diama. Ask us for the right jig and press settings for your exact model.
Do not assume so. Match the mouthpiece and filling fixture to the exact capacity and mechanical revision.
No. This product is empty, ready-to-fill hardware. Product imagery may show oil for illustration.
No. Viscosity, composition, filling and storage conditions affect performance. Test your oil in this model before ordering production quantities.
