Production deep dive / Filling + capping

CCELL® Snap-Fit Capping Technology

Organized trays, matched fixtures and a manual arbor press that caps 50 cartridges at a time. Here’s how CCELL’s snap-fit filling and capping system fits together.

Explore the system Discuss your line

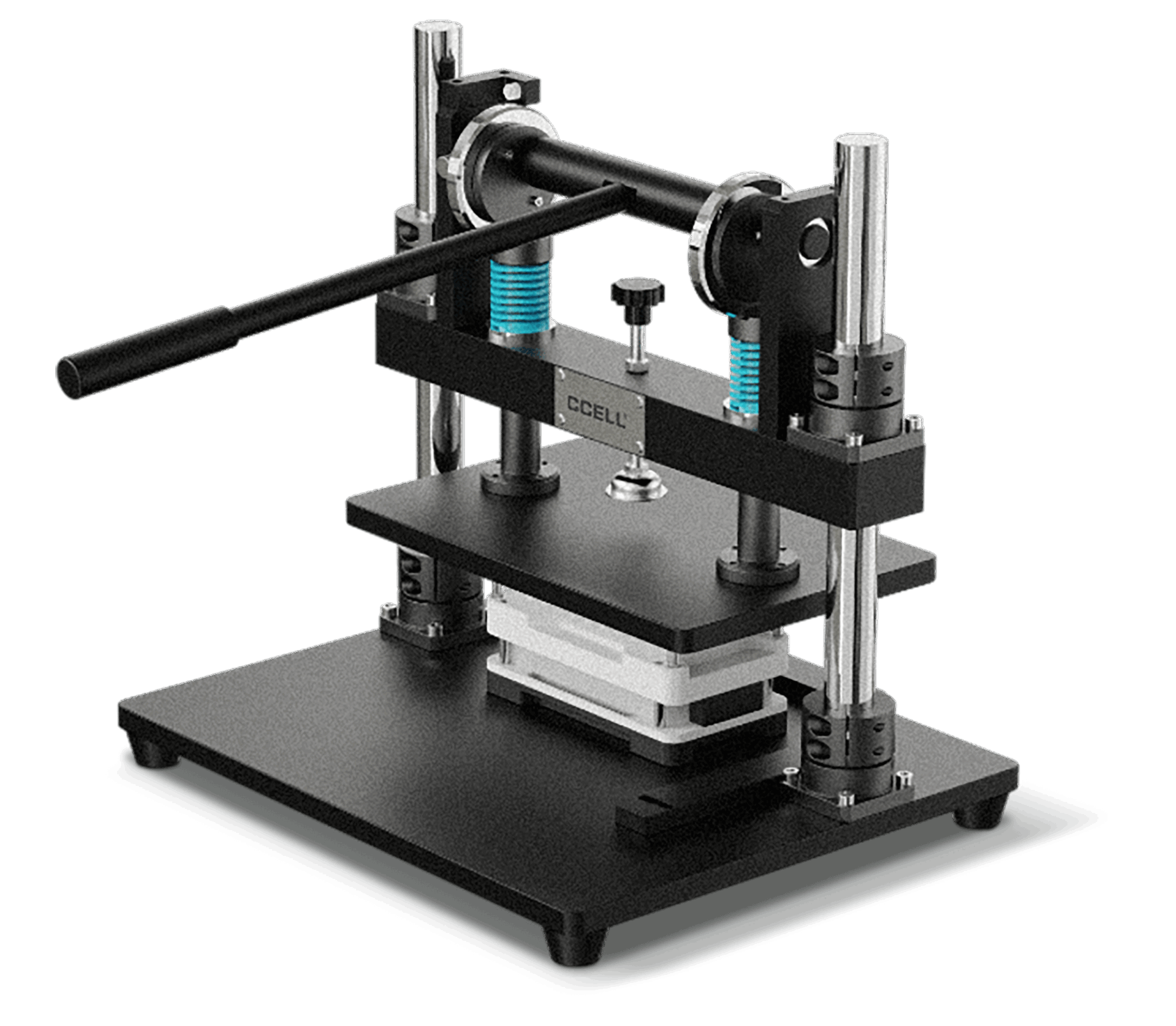

CCELL manual arbor press with lever, vertical guides and cartridge capping fixture
CCELL Arbor Press
Batch size depends on the device.
01 / ORGANIZERacked components
02 / ALIGNModel-matched fixture
03 / CAPControlled press step
04 / VERIFYSeating + quality checks

01 / Start with matched components

The press is one part.
The fixture makes it fit.

Batch capping works when the device, mouthpiece, tray and fixture all match. Each device has its own fixture, so we’ll confirm the right setup for your model.

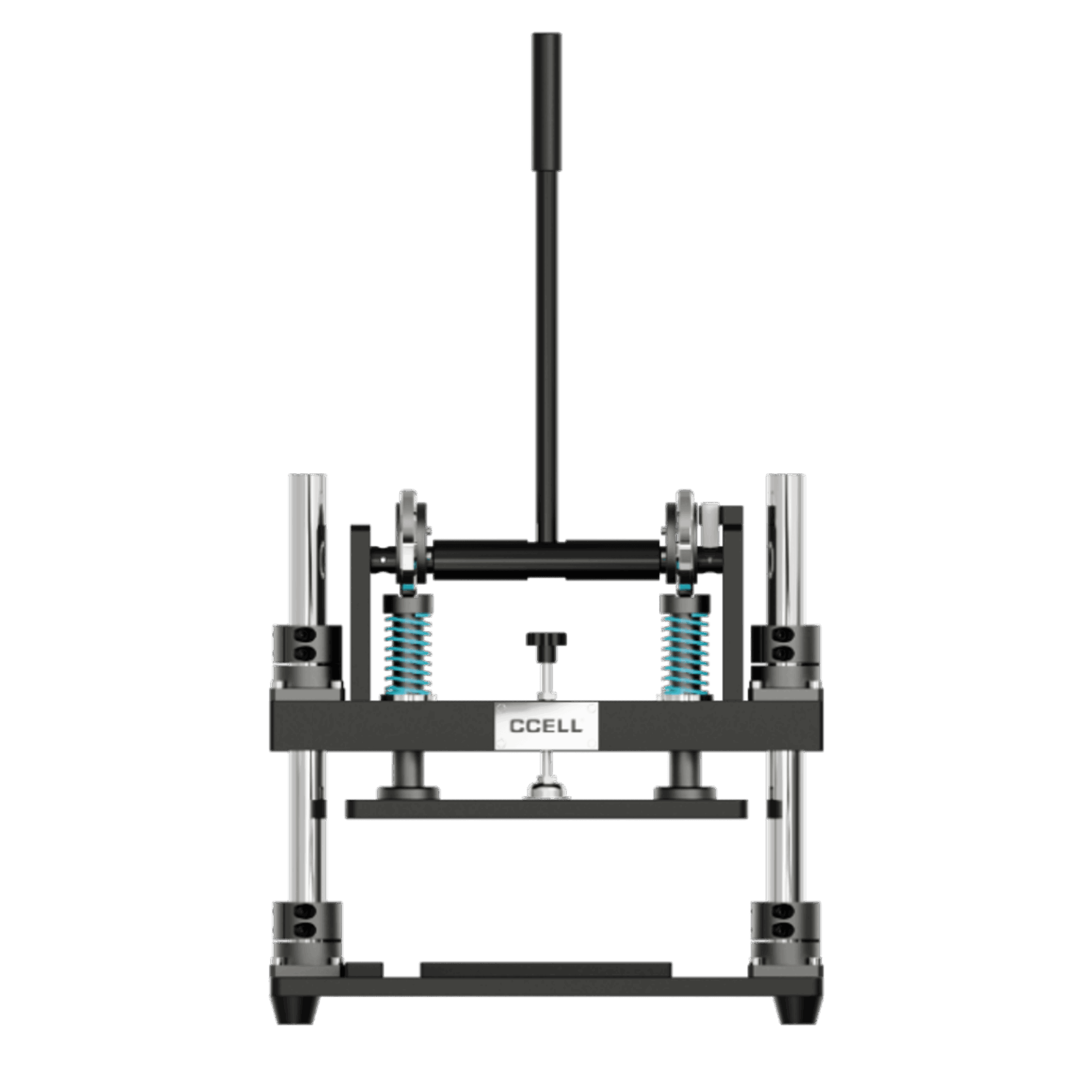

Front view of the CCELL arbor press
CCELL manual arbor press
The capping equipment

A compact manual press.

The CCELL Arbor Press is the batch-capping step in CCELL’s filling and capping solution. For cartridges, it caps 50 units per cycle. [1]

Set it up once, per model.

Mount the press, fit the fixture for your device and follow CCELL’s setup instructions.

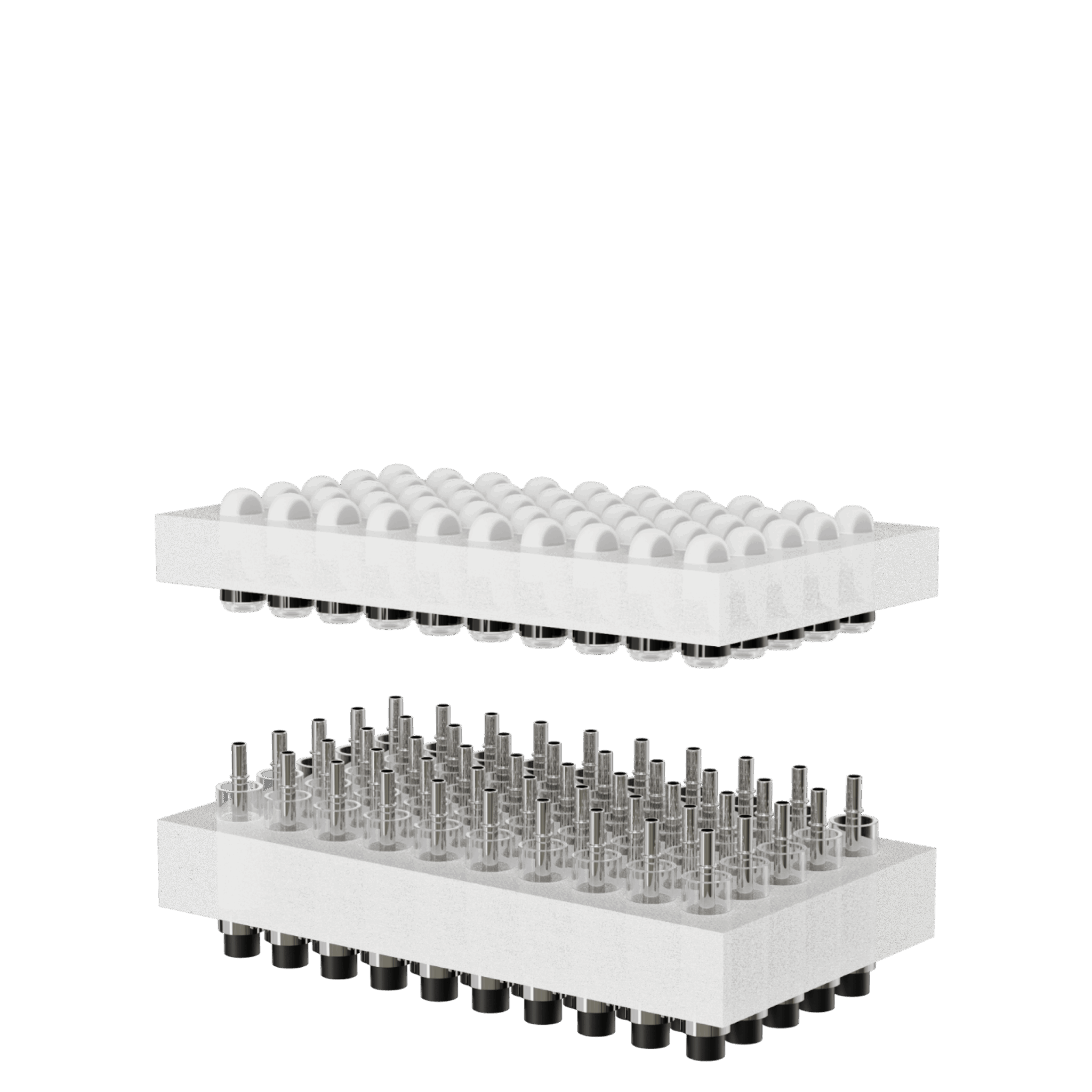

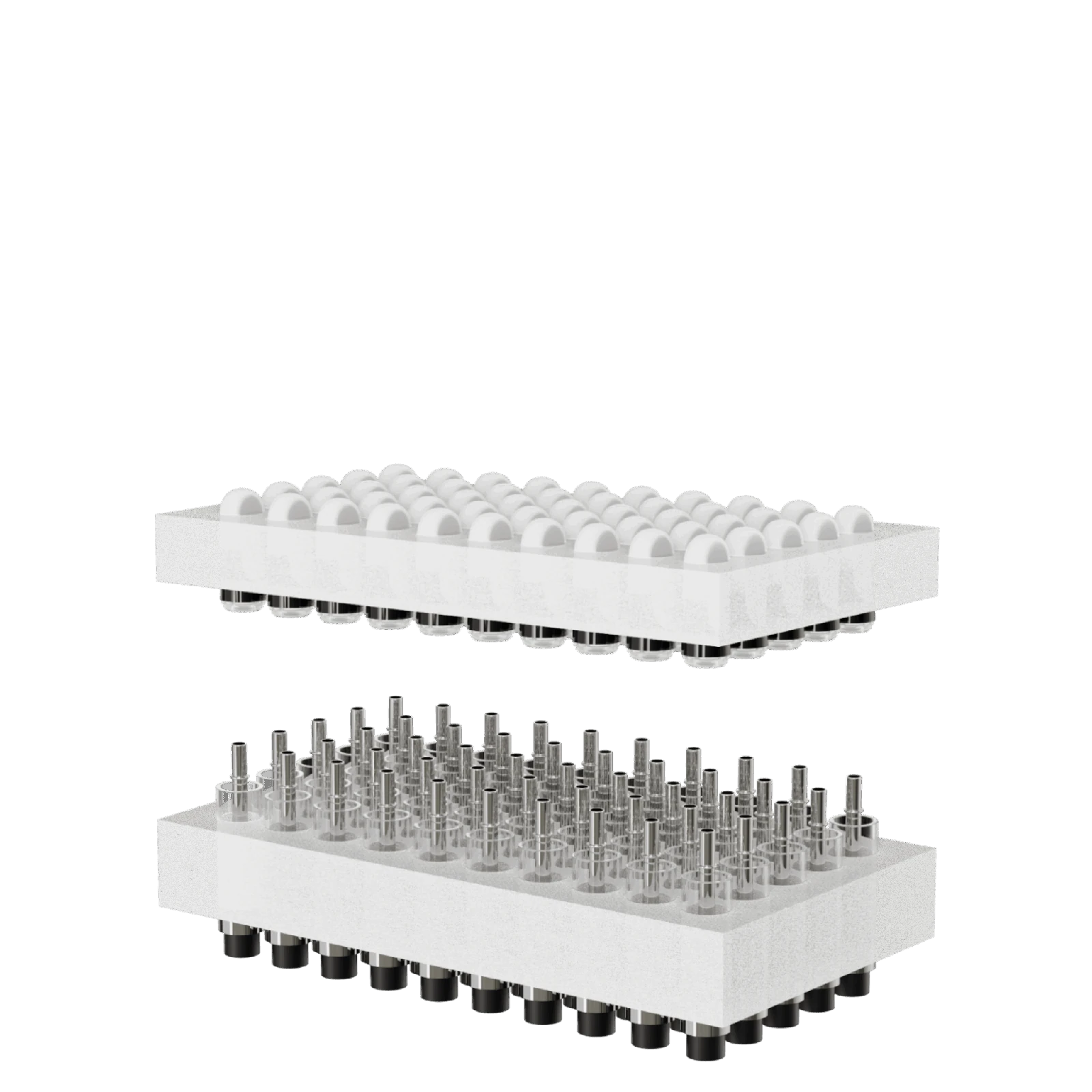

Separate racked cartridge reservoirs and mouthpieces aligned for batch capping
Cartridge trays · layout varies by model
Organization before capping

Keep the components
in a defined arrangement.

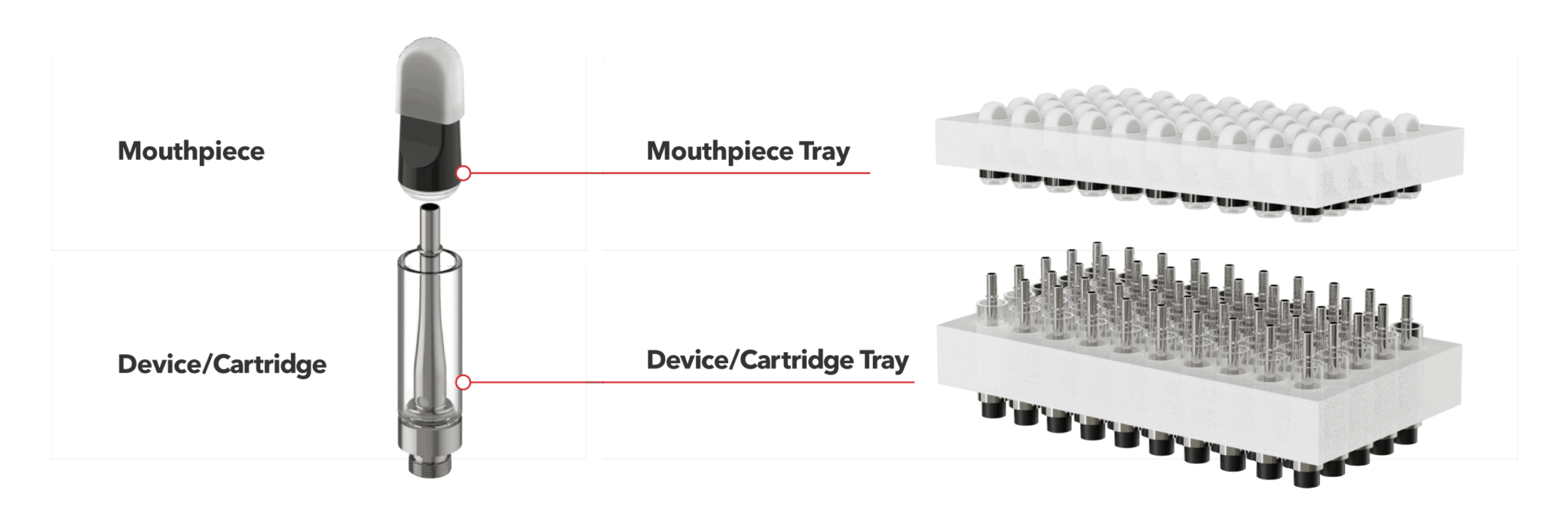

Cartridges and mouthpieces arrive in separate, matched trays, so a whole batch moves from filling to capping without being handled one by one.

Check the tray layout for your model.

Tray count, spacing and orientation vary by model. Ask us for the layout before you set up your line.

CCELL model-specific capping fixture components
Capping fixture
The interface with your device

Alignment is
a hardware requirement.

Precision fixtures hold each cartridge in line so every mouthpiece seats straight. [1] Each fixture is matched to a device’s shape.

Match the fixture to the device.

Ask us which fixture fits your model, and whether fixtures and trays ship with your order.

02 / A repeatable production sequence

Load. Fill. Align. Verify.

01 / LOAD

Confirm the batch.

Check the model, parts and fixture, and inspect the trays as they arrive.

02 / FILL

Follow the device guide.

Fill to the model’s fill amount and cap within its capping window.

03 / ALIGN + CAP

Use the matched setup.

Line up the mouthpieces in the fixture and press to cap the whole tray.

04 / VERIFY

Inspect before release.

Check that every mouthpiece is fully seated, pull any rejects and move the batch to packaging.

Ask us for the equipment manual and your model’s filling and capping instructions.

03 / Batch sizes

50 carts per press.
Other devices vary.

Cartridges cap 50 at a time. All-in-ones use their own trays: the Vision Box Elite, for example, caps 18 at a time. [1][2]

Capping batch sizes
Device Per batch Notes
Cartridges 50 With the matching cartridge fixture.
Vision Box Elite 18 All-in-one tray.
Other models Ask us We’ll confirm the batch size for your model.
Efficiency

Faster capping,
lower labor cost.

CCELL reports up to 5× operational efficiency, 80% lower labor cost and 20% smaller packaging than industry-average setups. Your results depend on your machinery. [1]

Figures from CCELL.

04 / Your filling equipment

Works with the
machines you use.

CCELL’s filling and capping solution is built around established filling-equipment brands. Send us your machine model and tooling, and we’ll confirm the fit. [1]

ATG Pharma equipment reference
ATG Pharma
Thompson Duke equipment reference
Thompson Duke
DDS equipment reference
DDS
Xylem equipment reference
Xylem
VapeJet equipment reference
VapeJet
  1. 01 / SHARE

    Your machine details

    Send the maker, model and tooling, plus your current tray setup if you’re adapting a line.

  2. 02 / CONFIRM

    The exact device setup

    We’ll confirm the model, closure, tray layout, fixture and batch size.

  3. 03 / TRIAL

    A representative run

    Run a trial batch from loading to inspection, and time the whole cycle.

05 / Questions

Snap-fit capping,
answered.

No. Easy, EVOMAX, Vita and Diama cartridges use snap-fit mouthpieces. TH2 SE comes in both snap-fit and screw-on versions, and all-in-ones vary by model.

No. Each fixture is matched to a device’s shape. Ask us for the fixture that fits your model.

Follow CCELL’s instructions for your device and fixture. Ask us and we’ll send them.

It depends on the model and order. Ask us, and we’ll confirm what’s included before you order.

Most likely. CCELL’s solution references ATG Pharma, Thompson Duke, DDS, Xylem and VapeJet equipment. Send us your machine model and tooling and we’ll confirm.

Sources & reading notes

Equipment details and figures from CCELL.

  1. CCELL · Filling & Capping SolutionArbor Press, cartridge batch example, fixture purpose, equipment references and qualified efficiency comparisons.
  2. CCELL · Vision Box EliteManufacturer example of an 18-piece all-in-one batch-capping configuration.
