Technology deep dive / 01

CCELL® SE Heating Technology

CCELL’s original ceramic heating core, built for distillate. See how SE works, what the TH2-Easy and M6T-Easy cartridges add, and which SE cartridge or all-in-one fits your line.

Explore the core Request samples

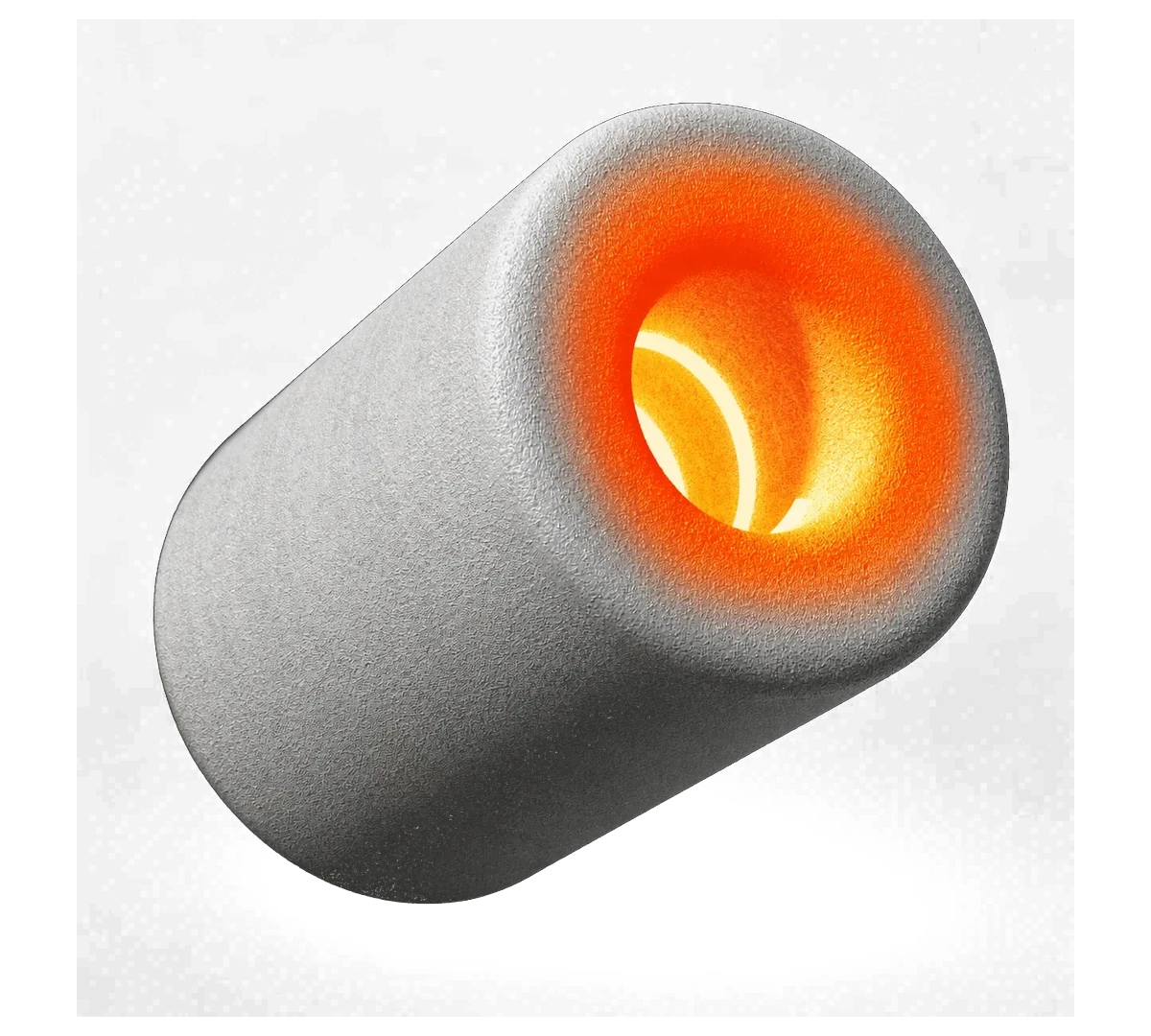

CCELL SE porous ceramic heating core with a glowing inner heating surface
Porous ceramic. Thin walls, fast heat.
CCELL illustration · enlarged
01 / MATERIALPorous ceramic
02 / DESIGNThin walls, fast heating
03 / FORMATSCartridges + all-in-ones
04 / OILSDistillate, 10K–700K cP

01 / Understand the core

Thin walls.
Fast, even heat.

SE is CCELL’s original porous ceramic formulation and its standard, lowest-cost element, with the heating coil built into the ceramic. Thinner walls let it heat quickly, and CCELL rates it for distillate from 10K to 700K cP. [4]

Cutaway of a CCELL SE ceramic core showing the built-in heating coil, oil and vapor
CCELL illustration · SE core cutaway
The heating structure

Oil soaks in.
Vapor comes off the wall.

SE is a porous ceramic sleeve with the heating coil built in. Oil soaks through the pores to the inner wall, where it’s heated and vaporized. The thin walls bring the core up to temperature fast. [2] [4]

Built for distillate.

For live resin, live rosin or liquid diamonds, start with EVOMAX, HeRo or CCELL 3.0 instead.

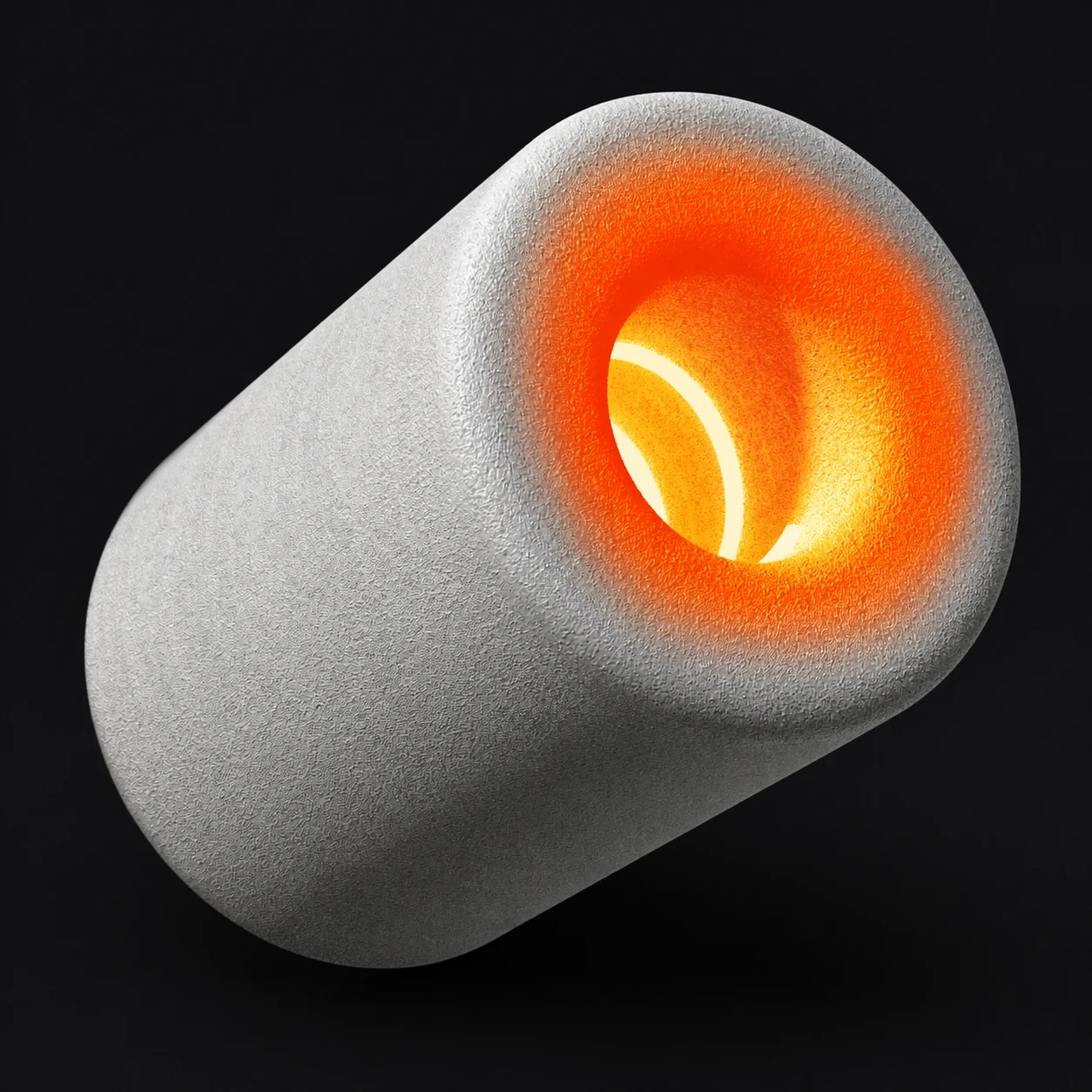

CCELL heating platform illustration
CCELL illustration · SE heating core
The oil range

10K to 700K cP.
Distillate only.

CCELL rates SE for distillates from 10,000 to 700,000 cP. Thicker or terpene-rich oils belong on a platform built for them. [4]

Measure before you choose.

Viscosity changes with temperature. Compare readings taken the same way, then confirm the fit in samples.

CCELL TH2-Easy glass and M6T-Easy plastic cartridges with their snap-fit mouthpieces removed
CCELL renders · TH2-Easy and M6T-Easy, mouthpiece off
The shared numbers

1.4 Ω and four 2 mm inlets, glass or poly.

Every 0.5 and 1.0 mL SE-core cartridge on this page, Easy and SE, glass and poly, runs a 1.4 Ω ceramic element fed by four 2 mm oil inlets on a standard 510 thread. [1] [2]

One core, one battery setting.

Because the element is the same, a setting you’ve dialed in on one SE cartridge carries over to the others.

  1. 01 / OIL

    Confirm it’s distillate

    Note the formulation and its viscosity, measured at a known temperature.

  2. 02 / HARDWARE

    Pick body, size and closure

    Glass or poly, 0.5 to 2.0 mL, snap-fit or screw-on. The sections below cover each choice.

  3. 03 / VALIDATION

    Test in samples

    Fill and cap samples the way you’ll run production, then compare them side by side.

02 / The Easy Series

Snap-fit carts.
Ready for batch capping.

TH2-Easy and M6T-Easy put the SE core in a snap-fit cartridge with a stainless-steel center post. Choose borosilicate glass or BPA-free plastic, in 0.5, 1.0 or 2.0 mL. [1]

CCELL TH2-Easy 0.5 mL glass cartridge, shown to scaleCCELL TH2-Easy 1.0 mL glass cartridge, shown to scale
EASY / BOROSILICATE GLASS

TH2-Easy

A clear glass tank on the SE core, 10.6 mm wide: 51.8 mm tall at 0.5 mL and 62.1 mm at 1.0 mL. The 2.0 mL version uses a wider 14 mm body.

Shop TH2-Easy

CCELL M6T-Easy 0.5 mL plastic cartridge, shown to scaleCCELL M6T-Easy 1.0 mL plastic cartridge, shown to scale
EASY / BPA-FREE PLASTIC

M6T-Easy

A lightweight plastic tank on the SE core, 10.5 mm wide: 57.2 mm tall at 0.5 mL and 67.7 mm at 1.0 mL. The 2.0 mL version uses a wider 14 mm body.

Shop M6T-Easy

Cartridges drawn to scale from CCELL’s published heights, 0.5 mL and 1.0 mL side by side. The 2.0 mL Easy carts joined the line after CCELL’s launch file.

Easy Series specifications, from CCELL’s Easy Series launch file [1]
Spec TH2-Easy M6T-Easy
Body Borosilicate glass BPA-free plastic
Capacity 0.5, 1.0 or 2.0 mL 0.5, 1.0 or 2.0 mL
Size, 0.5 / 1.0 mL Ø10.6 × 51.8 / 62.1 mm (Ø0.42 × 2.04 / 2.44 in) Ø10.5 × 57.2 / 67.7 mm (Ø0.41 × 2.25 / 2.67 in)
Size, 2.0 mL 14 mm wide body 14 mm wide body
Heating core CCELL SE ceramic CCELL SE ceramic
Resistance and inlets, 0.5 / 1.0 mL 1.4 Ω · 4 × Ø2 mm 1.4 Ω · 4 × Ø2 mm
Mouthpiece Snap-fit Snap-fit
Center post Stainless steel, every size Stainless steel, every size
Connector Aluminum-alloy, 510 thread Aluminum-alloy, 510 thread
Mouthpieces we stock Black or white ceramic; black, white or clear plastic Black, white or clear plastic; 2.0 mL also in black or white ceramic

Choose your size and mouthpiece.

CCELL TH2-Easy 0.5 mL glass cartridge, drawn to scale
TH2-Easy · Ø10.6 × 51.8 mm

0.5 mL

Mouthpieces: black or white ceramic, black, white or clear plastic.

CCELL TH2-Easy 1.0 mL glass cartridge, drawn to scale
TH2-Easy · Ø10.6 × 62.1 mm

1.0 mL

Mouthpieces: black or white ceramic, black, white or clear plastic.

CCELL TH2-Easy 2.0 mL glass cartridge, drawn to scale
TH2-Easy · Ø14 × 60 mm

2.0 mL

Mouthpieces: black or white ceramic, black or white plastic.

Borosilicate glass

Every TH2-Easy

A clear glass tank on the SE core, with a stainless-steel center post and a snap-fit mouthpiece. Buy singles, boxes of 100 or cases of 2,000.

Shop TH2-Easy

CCELL M6T-Easy 0.5 mL plastic cartridge, drawn to scale
M6T-Easy · Ø10.5 × 57.2 mm

0.5 mL

Mouthpieces: black, white or clear plastic.

CCELL M6T-Easy 1.0 mL plastic cartridge, drawn to scale
M6T-Easy · Ø10.5 × 67.7 mm

1.0 mL

Mouthpieces: black, white or clear plastic.

CCELL M6T-Easy 2.0 mL plastic cartridge, drawn to scale
M6T-Easy · Ø14 × 60 mm

2.0 mL

Mouthpieces: black or white ceramic, black or white plastic.

BPA-free plastic

Every M6T-Easy

A lightweight plastic tank on the SE core, with a stainless-steel center post and a snap-fit mouthpiece. Buy singles, boxes of 100 or cases of 2,000.

Shop M6T-Easy

Each tab draws its cartridges to scale. Cards open that size’s listings, with every mouthpiece we stock.

03 / Easy or SE

Same core.
Different closures.

TH2-SE and M6T-SE run the same SE core and 1.4 Ω element as the Easy carts. What changes is how the mouthpiece goes on and what the center post is made of. [1] [2]

CCELL TH2-SE cartridges with a snap-fit mouthpiece and a screw-on mouthpiece, shown apart
CCELL renders · TH2-SE with snap-fit (left) and screw-on (right) mouthpieces
Closure options

Snap-fit, screw-on or press-in.

Easy carts are snap-fit only, so a full tray caps in one press. TH2-SE also takes a screw-on mouthpiece and M6T-SE a press-in one, for lines that cap by hand or want a threaded mouthpiece style. [2]

EASY POST
Stainless steel
SE POST
Low-lead brass
ELEMENT
1.4 Ω, both
Easy vs SE cartridges, from CCELL’s launch files [1] [2]
Spec TH2-Easy TH2-SE M6T-Easy M6T-SE
Body Borosilicate glass Borosilicate glass BPA-free plastic BPA-free thermoplastic
Capacities we stock 0.5, 1.0, 2.0 mL 0.5, 1.0, 2.0 mL 0.5, 1.0, 2.0 mL 0.5, 1.0 mL
Size, 0.5 / 1.0 mL Ø10.6 × 51.8 / 62.1 mm Ø10.5 × 51.8 / 62.1 mm Ø10.5 × 57.2 / 67.7 mm Ø10.5 × 57.4 / 67.9 mm
Mouthpiece Snap-fit Snap-fit or screw-on Snap-fit Snap-fit or press-in
Center post Stainless steel, every size Low-lead brass (0.5 / 1.0 mL) Stainless steel, every size Low-lead brass
Batch capping, 50 at a time Yes Snap-fit versions Yes Snap-fit versions
Element and inlets, 0.5 / 1.0 mL 1.4 Ω · 4 × Ø2 mm 1.4 Ω · 4 × Ø2 mm 1.4 Ω · 4 × Ø2 mm 1.4 Ω · 4 × Ø2 mm

The TH2-SE 2.0 mL is a snap-fit cart on a 14 mm body, 60 mm tall.

Which one?

Choose Easy if you cap in batches and want a stainless-steel center post. Choose SE if you need a screw-on or press-in mouthpiece, or one of our threaded TH210-SE styles in sandalwood, chrome, stainless steel or gold.

Browse TH2-SE Browse M6T-SE All Easy and SE cartridges

04 / From tray to capped

Fifty at a time.
Straight from the tray.

Easy cartridges and their mouthpieces ship on matching foam trays of 50, laid out for CCELL’s batch-capping fixture. [1]

01 / TRAYS

50 per tray

Foam trays hold 50 cartridges at 14 mm spacing: 152 × 82 × 15 mm for 0.5 mL, 152 × 82 × 20 mm for 1.0 mL.

02 / CAPS

Caps come fitted

Every cartridge base arrives with a transparent silicone bottom cap. Duckbill mouthpieces also ship with silicone tip caps.

03 / PRESS

One press, fifty carts

Fill the tray, set the mouthpiece tray on top in the fixture, and press all 50 snap-fit mouthpieces on at once.

04 / CARTONS

Packed separately

Mouthpieces and cartridges ship in separate master cartons, so order both for each run.

Mouthpiece tray lined up over a tray of 50 cartridges for snap-fit batch capping
Mouthpiece tray over a cartridge tray, 50 of each · CCELL image
CCELL manual arbor press with lever, vertical guides and cartridge capping fixture
CCELL Arbor Press · caps 50 cartridges per cycle · CCELL image
How snap-fit capping works

Ask us for the fill and capping instructions for your exact model before your first run.

05 / Make it yours

Your brand
on the cart.

CCELL can print the tank, finish the collar and color the plastic and metal parts on SE and Easy cartridges. Here is what each part takes, with the print areas CCELL publishes for the SE carts. [2] [6]

OEM customization options and published print areas for SE and Easy cartridges
Part Options Print area
Tank, TH2 glass Silkscreen per color and side, pad printing 32.97 × 16.5 mm (0.5 mL), 32.97 × 26 mm (1.0 mL)
Tank, M6T poly Silkscreen per color and side, pad printing 32.97 × 15.5 mm (0.5 mL), 32.97 × 25.5 mm (1.0 mL)
Collar, TH2 Powder coating in black or a custom color, silkscreen, electroplating 32.97 × 4.5 mm
Collar rings, M6T Powder coating in black or a custom color, silkscreen, electroplating Upper 32 × 6 mm, lower 32.97 × 6 mm
Mouthpiece and other plastic parts Custom colors —
Metal parts Custom colors —

Print areas are CCELL’s published TH2-SE and M6T-SE figures. Easy carts take the same tank and collar options; ask us for the Easy and 2.0 mL artwork templates.

Mouthpieces

Match the mouthpiece to the brand.

For SE cartridges, CCELL makes mouthpieces in ceramic, metal, plastic, biodegradable PLA and wood, in duckbill, bullet, hourglass and barrel shapes. Plastic mouthpieces can be molded in your colors. [3] [6]

Custom branding

06 / SE in an all-in-one

The same core,
battery included.

SE also runs inside CCELL all-in-ones, where the tank and battery come as one device. [5]

CCELL Easy Bar — 2.0ml All-In-One
Easy Bar · CCELL render
SE / Inhale-activated all-in-one

Easy Bar

A slim, inhale-activated bar on the SE core, with a stainless-steel center post, an indicator light and USB-C charging. CCELL pitches it as a low-cost match for distillate. [5]

0.5 and 1.0 mL: 99.3 × 23 × 10.5 mm with a 210 mAh battery. 2.0 mL: 103.8 × 23 × 11.6 mm with 280 mAh.

Branding: the battery case takes PVD, digital printing, silkscreen or laser engraving, and the case and mouthpiece can be molded in your colors. [5]

CAPACITY
0.5 / 1 / 2 mL
BATTERY
210 / 280 mAh
VOLTAGE
3.4 V
View Easy Bar
CCELL Mini Tank 1.0 mL all-in-one
SE / All-in-one

Mini Tank

The 1.0 mL SE version: 63 × 35 × 15 mm, 200 mAh, inhale-activated, with an optional anti-clog design. Brand it with silkscreen, color printing, a gradient coating or a soft-touch finish.

CCELL® Flex 1.0ml Disposable (Blue)
SE / All-in-one

Flex

Dual air vents and a custom-shaped oil window, in 0.5–1.0 mL (280 mAh) or 1.5–2.0 mL (300 mAh). Silkscreen, color printing and a soft-touch finish are available.

CCELL Listo 1.0ml Disposable
SE / All-in-one

Listo

A compact 1.0 mL all-in-one with a visible tank, a 350 mAh battery and 316L stainless-steel internals. Brand it with silkscreen or color printing.

Check the core

Same name, different core.

Mini Tank EM, Mini Tank 2.0 and Flex-X use EVOMAX, not SE. Each product page lists its core.

EVOMAX technology
Browse SE all-in-ones All disposables

07 / Before you choose

SE and Easy,
answered.

Straight answers to the questions buyers ask most.

Yes. CCELL lists the Easy carts under the SE platform, and its Easy Series launch file specifies the same 1.4 Ω ceramic element and four 2 mm inlets as the TH2-SE and M6T-SE.

The mouthpiece fit and the center post. Easy is snap-fit only, with a stainless-steel center post in every size (CCELL specifies medical-grade stainless steel for the 0.5 and 1.0 mL). SE comes snap-fit or screw-on (TH2) or snap-fit or press-in (M6T), with a low-lead brass post.

Distillate, rated from 10K to 700K cP. For live resin, choose EVOMAX; for live rosin, EVOMAX or HeRo; for liquid diamonds, EVOMAX or CCELL 3.0. The platform comparison lays them side by side.

TH2 bodies are borosilicate glass. M6T bodies are BPA-free plastic, which CCELL describes as corrosion- and impact-resistant, and they stand about 5.5 mm taller at each size. Both use the same core.

Yes. TH2-Easy and M6T-Easy both come in 2.0 mL on a wider 14 mm body, with snap-fit mouthpieces and the same stainless-steel center post as the smaller sizes. They joined the line after CCELL’s original Easy launch file.

No. Easy cartridges and mouthpieces ship on separate trays in separate master cartons. You fill first, then cap.

Any standard 510-thread battery. The 0.5 and 1.0 mL SE and Easy carts all run the same 1.4 Ω element, so one battery setting works across them.

Yes. See the print areas above, or tell us what you have in mind on the custom branding page.

Not on in-stock items. Buy singles to test, then boxes of 100 or cases of 2,000 at lower per-cart prices. Each product page shows the tiers.

Tell us your oil, format and fill volume on the sample request page, and we’ll send SE and Easy samples to test.

Sources & reading notes

Specifications and options from CCELL launch files, product pages and OEM options.

  1. CCELL · Easy Series launch file (M6T-Easy & TH2-Easy)Specifications, snap-fit batch capping, trays and packaging.
  2. CCELL · TH2-SE and M6T-SE launch filesSpecifications, mouthpiece closures, center posts and OEM print areas.
  3. CCELL · TH2-SE and M6T-SE product pagesMouthpiece materials and shapes, and M6T body properties.
  4. CCELL · Heating technology and cartridge guidesSE viscosity rating, oil type, wall design and SE product lineup.
  5. CCELL · Easy Bar, Flex Series and Mini Tank launch filesAll-in-one specifications, heating cores and branding options.
  6. CCELL · OEM customization options (2025)Finishing options by part: silkscreen, powder coating, color printing and custom colors.
