OIL TYPE GUIDE

Live Resin

The gold standard of terpene-rich cannabis concentrates — made from flash-frozen plant material to preserve the full spectrum of aroma, flavor, and therapeutic compounds that define each strain.

What Is Live Resin?

Live resin is a cannabis concentrate produced from freshly harvested plants that are flash-frozen immediately after cutting — bypassing the traditional drying and curing process entirely. This single difference in handling preserves the plant’s complete terpene profile, including volatile monoterpenes like myrcene, limonene, and pinene that would otherwise evaporate during a standard 10–14 day dry-and-cure cycle.

The result is a concentrate that captures the living plant’s authentic aroma and flavor in a way that no other extraction method can replicate. Where distillate strips cannabis down to pure cannabinoids and re-adds terpenes after the fact, live resin retains the plant’s natural terpene ratios — the exact chemical fingerprint that makes each cultivar unique.

live resin jar
trichomes macro 768x512

It Starts With the Plant

Every batch of live resin begins at the moment of harvest. Cannabis plants destined for live resin production are grown to full maturity, monitored until trichome development reaches its peak — the point where the tiny, mushroom-shaped resin glands covering the flower surface are swollen with cannabinoids and terpenes.

Trichomes are the plant’s chemical factories. Under a microscope, each gland head appears as a translucent sphere sitting atop a thin stalk. Inside that sphere is a complex mixture of over 100 different cannabinoids (THC, CBD, CBG, CBN, and dozens more) and 200+ terpenes. The ratio of these compounds varies by strain and determines the unique sensory and therapeutic profile of each cultivar.

At peak maturity, these trichome heads shift from clear to milky-white, signaling maximum cannabinoid concentration. Experienced cultivators harvest within a narrow 2–3 day window to capture the optimal trichome state.

The Flash-Freeze Window

This is the step that defines live resin and separates it from every other concentrate. Within 1–4 hours of cutting, freshly harvested plants are placed into a deep-freeze environment, typically at temperatures between -20°F and -40°F (-29°C to -40°C). Some premium operations use cryogenic flash-freezing with liquid nitrogen, plunging plant material to -320°F (-196°C) in seconds.

Why speed matters: From the moment a cannabis plant is cut, its terpene profile begins degrading. Volatile monoterpenes — the lightest, most aromatic compounds — start evaporating within minutes of harvest. Studies have shown that traditional drying and curing can destroy up to 55–60% of a plant’s original terpene content. Myrcene, the most abundant terpene in most cannabis strains, is particularly vulnerable to heat and oxidation.

Flash-freezing halts all enzymatic and oxidative degradation instantly. The rapid temperature drop locks volatile terpenes inside the trichome heads, preserving the exact chemical composition of the living plant. The frozen material is then stored in sealed, light-proof containers at sub-zero temperatures until extraction — sometimes for weeks or months without measurable terpene loss.

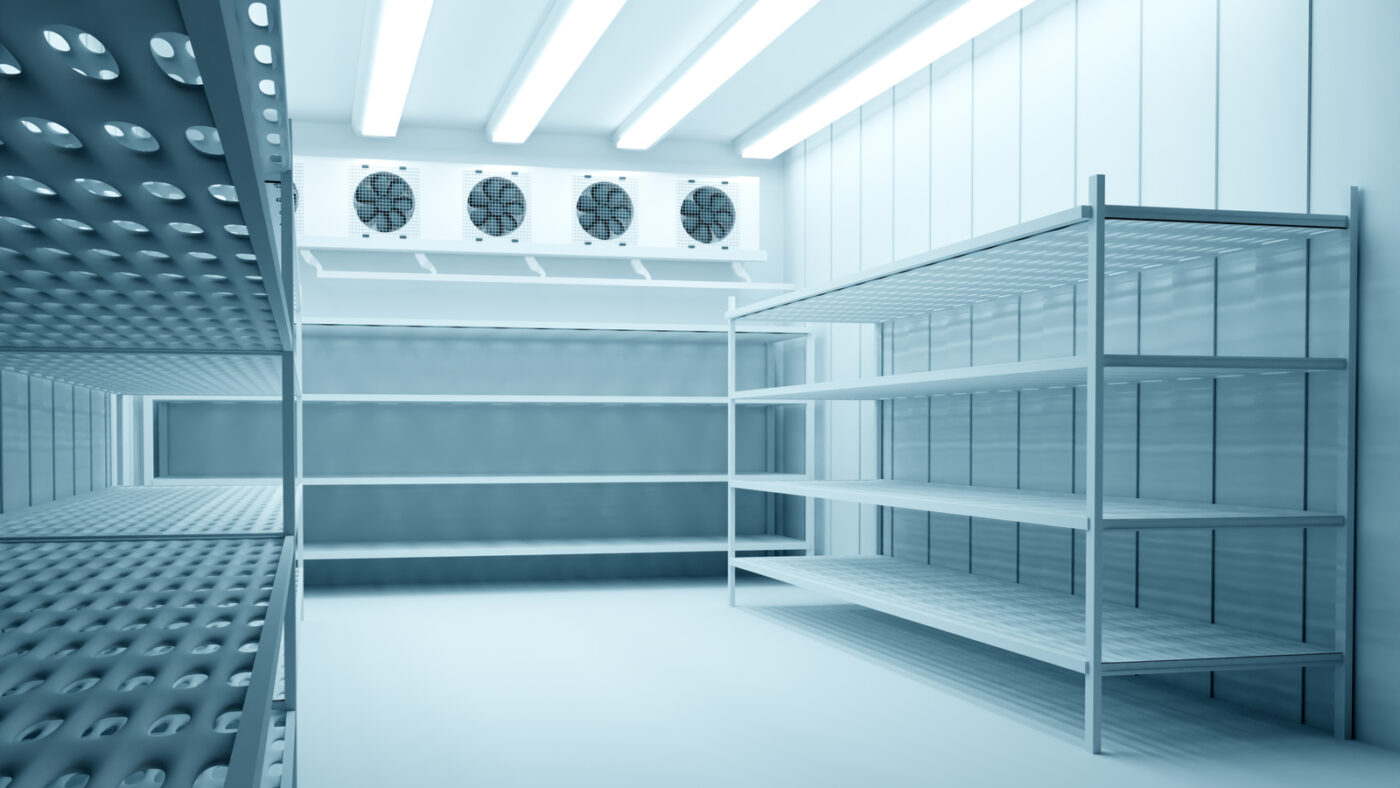

flash freezer 1400x788

The Science of Terpenes

Terpenes are volatile organic hydrocarbons produced in the trichome glands of the cannabis plant. They are the primary drivers of aroma and flavor, but their significance extends far beyond sensory experience. Research increasingly supports the entourage effect — the theory that cannabinoids and terpenes work synergistically, with terpenes modulating and enhancing the therapeutic effects of THC, CBD, and other cannabinoids.

Cannabis produces terpenes from the same metabolic pathways as cannabinoids — the MEP (methylerythritol phosphate) pathway in the plastids of trichome cells. Monoterpenes (C₁₀) and sesquiterpenes (C₁₅) are the two primary classes found in cannabis, each with distinct physical properties that matter for extraction and preservation:

chemistry equation

Monoterpenes (C₁₀H₁₆)

Myrcene — Earthy, musky. The most abundant cannabis terpene. Anti-inflammatory properties. Boiling point: 334°F (168°C).

Limonene — Citrus, lemon. Anxiolytic and mood-elevating. Boiling point: 349°F (176°C).

α-Pinene — Pine, herbal. Bronchodilator, may counter THC-induced memory impairment. Boiling point: 311°F (155°C).

Sesquiterpenes (C₁₅H₂₄)

β-Caryophyllene — Peppery, spicy. The only terpene known to directly activate CB2 receptors. Boiling point: 266°F (130°C).

Humulene — Hoppy, woody. Anti-inflammatory. Boiling point: 388°F (198°C).

Linalool — Floral, lavender. Sedative and anxiolytic. Common in indica-dominant strains. Boiling point: 388°F (198°C).

Why This Matters

Monoterpenes are the most volatile — they have low boiling points and evaporate easily at room temperature. These are the first compounds lost during drying.

Live resin’s flash-freeze process is specifically designed to preserve these fragile monoterpenes that give each strain its signature scent.

Lab testing consistently shows that live resin contains 2–5x higher monoterpene concentrations compared to extracts made from dried and cured material.

The Extraction Process

Live resin extraction is a multi-stage process that requires specialized equipment, trained operators, and strict safety protocols. The goal at every step is the same: dissolve the trichome contents into a solvent, then remove the solvent completely while preserving the delicate terpene profile.

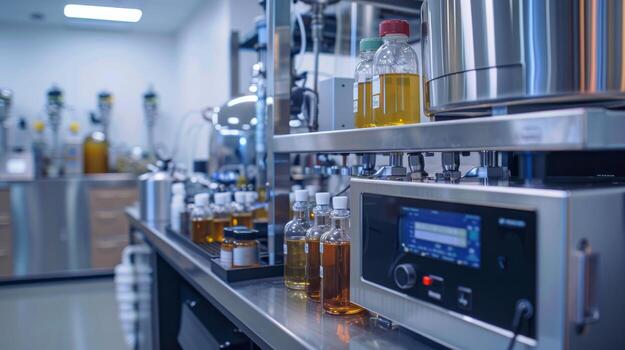

extraction lab

Step 1: Hydrocarbon Extraction

Live resin is produced using hydrocarbon extraction — a process where liquefied gases (butane, propane, or a blend of both) are used as solvents to dissolve cannabinoids and terpenes from the frozen plant material.

Why hydrocarbons? Butane (C₄H₁₀) and propane (C₃H₈) are non-polar solvents with low boiling points — butane boils at 30.2°F (-1°C) and propane at -43.6°F (-42°C). This means they can dissolve trichome contents at extremely cold temperatures without damaging heat-sensitive terpenes. By contrast, ethanol extraction requires higher temperatures and also pulls unwanted water-soluble compounds like chlorophyll. CO₂ extraction operates at pressures that can degrade delicate monoterpenes.

The most common approach is a 70/30 butane-propane blend. The propane component improves terpene extraction efficiency and produces a runnier, more terpene-rich output, while butane provides better overall cannabinoid yield.

Step 2: Inside the Closed-Loop System

All commercial live resin production uses a closed-loop extraction system — a sealed, pressurized apparatus where the solvent never contacts the open atmosphere. This is both a safety requirement (hydrocarbon vapors are highly flammable) and a quality measure (exposure to air would oxidize terpenes).

How it works: The frozen cannabis is loaded into a stainless steel material column (the extraction vessel). Chilled liquid solvent is pushed from a pressurized solvent tank through the material column, dissolving the trichome contents as it passes through the plant material. The solvent — now carrying dissolved cannabinoids, terpenes, and some lipids — flows into a collection vessel.

Critical process parameters include maintaining sub-zero temperatures (-40°F or colder) throughout the extraction to maximize terpene recovery and minimize extraction of undesirable compounds like chlorophyll and plant waxes. Residence time — how long the solvent contacts the plant material — typically ranges from 15–30 minutes for live resin runs. Shorter contact times produce a lighter-colored, more terpene-forward extract.

closed loop extractor
live resin vacuum purge

Step 3: Solvent Recovery & Purging

Once extraction is complete, the solvent must be removed from the concentrated oil. This happens in two phases:

Solvent recovery: The collection vessel is gently heated while the solvent tank is chilled, creating a pressure differential that pulls the evaporating solvent back into the tank for reuse. This recovers approximately 95% of the solvent. The process is carefully controlled to avoid temperatures above 90°F (32°C), as excessive heat would cause irreversible terpene degradation.

Vacuum purging: The remaining 5% of residual solvent is removed using a vacuum oven. By reducing atmospheric pressure to ~29 inHg below sea level, the boiling point of butane drops to well below room temperature, allowing it to evaporate from the extract without heat. Purging typically runs for 24–72 hours at temperatures between 85–100°F (29–38°C). The target is less than 500 ppm residual solvent, the standard set by most state cannabis regulators.

Step 4: Winterization & Filtration

Raw live resin extract contains not only cannabinoids and terpenes but also plant lipids, waxes, and fats. While these are harmless, they can cause problems in vape cartridge hardware — coating the heating element, restricting wicking, and producing a harsher, less clean vapor.

Winterization is the process of removing these lipids. The raw extract is dissolved in cold ethanol (-40°F or colder) and held at sub-zero temperatures for 24–48 hours. At these temperatures, waxes and fats solidify and precipitate out of solution. The mixture is then passed through fine filter media (typically 0.5–1 micron filters) to physically separate the solidified lipids from the dissolved cannabinoids and terpenes.

The ethanol is then evaporated using a rotary evaporator (rotovap) under vacuum, leaving behind a clean, lipid-free live resin. Some producers skip winterization for a “full-spectrum” product that retains all plant compounds, but this requires more robust vape hardware to handle the thicker, waxier oil.

rotovap
finished oil beaker

The Finished Product



High-quality live resin is a viscous, golden-to-amber oil with a strong, authentic cannabis aroma. When you open a jar of well-made live resin, the terpene content is immediately apparent — the fragrance should unmistakably represent the strain it was extracted from.

Visual indicators of quality: The best live resin has a translucent, honey-like appearance with a golden-amber color. Darker color typically indicates higher extraction temperatures, longer contact times, or older starting material. Cloudiness may indicate residual lipids (common in non-winterized product) or moisture contamination.

Lab results to look for: A premium live resin typically tests at 65–85% total cannabinoids with 5–15% total terpene content. For comparison, distillate typically tests at 85–95% cannabinoids but only 2–5% terpenes (which are re-added after extraction, not native). The higher natural terpene content in live resin is what drives its superior flavor and entourage effect potential.

Key Characteristics

Viscosity

100K–500K cP



Varies with terpene content and degree of filtration

Potency

65–85%



Total cannabinoids — lower than distillate but richer profile

Terpenes

5–15%



Native strain terpenes, 2–5x higher than cured resin

Appearance

Gold/Amber

Translucent, honey-like oil with strong aromatic presence

Live Resin vs. Other Concentrates

Understanding where live resin fits in the concentrate landscape helps brands position their products and select the right hardware:

vs. Distillate

Distillate is refined to 85–95% pure cannabinoids but loses all native terpenes in the process. Terpenes are re-added post-extraction, often botanical rather than cannabis-derived. Live resin preserves the real thing — lower total THC but dramatically richer flavor.

vs. Cured Resin

Cured resin uses the same hydrocarbon extraction process but starts with dried and cured plant material. The drying process destroys 30–60% of volatile terpenes before extraction begins. Live resin’s fresh-frozen starting material preserves what cured resin loses.

vs. Live Rosin

Both start with fresh-frozen material, but live rosin is solventless — made using ice water hash and heat/pressure. Live rosin commands even higher prices but yields are lower and production is more labor-intensive. Live resin offers a similar terpene profile at better economics.

vs. Liquid Diamonds

Liquid diamonds combine pure THCA crystals with live resin terpene sauce. The result is higher potency (often 90%+) while maintaining a natural terpene profile. Think of it as live resin’s more potent cousin — premium pricing, premium experience and effects.

Hardware Compatibility

Live resin presents more hardware challenges than distillate due to two factors: higher viscosity (100,000–500,000 cP) and the presence of residual plant fats and lipids that can coat heating elements and restrict wicking over time. Selecting the right cartridge platform is critical to delivering the experience consumers expect.

Why ceramic coils matter for live resin: CCELL’s ceramic heating technology uses a microporous ceramic element with precisely calibrated pore sizes. These pores wick thick oils through capillary action, pulling the viscous live resin into the heating zone evenly. Traditional cotton wicks cannot reliably handle live resin’s viscosity — they produce uneven heating, dry hits, and clogging.

For live resin cartridge programs, the EVOMAX platform is the recommended minimum. Its oversized ceramic element with thicker walls and consistent pore distribution wicks thicker oils reliably without dry hits or clogging. The SE platform can handle well-filtered live resin but may experience reduced lifespan with heavier formulations. For extremely highly filtered, refined live resin, the CCELL 3.0 platform can also be an excellent choice — its advanced ceramic technology delivers exceptional flavor expression, but the oil must be thoroughly winterized and filtered for reliable performance.

Filtration quality directly impacts hardware performance. Live resin that has been properly winterized or filtered to remove excess fats performs significantly better in cartridge hardware. Brands should work closely with their extraction team to optimize filtration for vape-grade live resin — the cleaner the oil, the wider the range of compatible hardware.

Budget

SE Platform

Well-filtered resin only. Standard ceramic coil handles winterized live resin. May clog with heavy, unfiltered product.

Recommended

EVOMAX Platform

Full live resin support. Oversized ceramic element with optimized pore distribution handles all viscosities.

Highly Filtered

CCELL 3.0 Platform

Excellent for thoroughly refined live resin. Advanced ceramic delivers exceptional flavor, but oil must be very highly filtered.

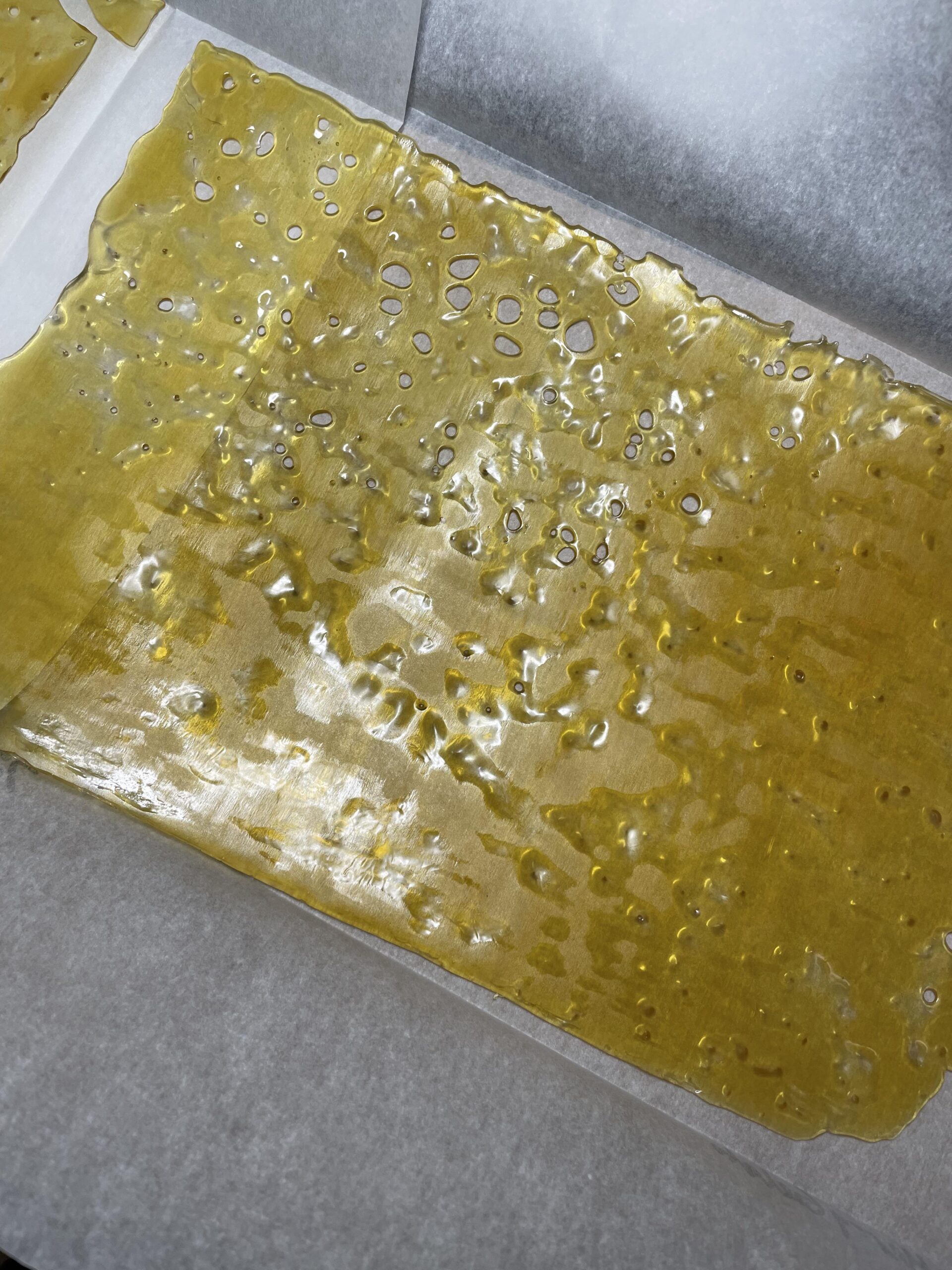

live resin slab scaled

Why Brands Choose Live Resin

Live resin has become one of the fastest-growing segments in the cannabis vape market, driven by consumer demand for authentic, strain-specific experiences. For brands building or expanding their vape product line, live resin represents a strategic opportunity:

  • Premium positioning — Live resin commands 20–40% higher retail prices than distillate, improving margins for brands and retailers.
  • Strain authenticity — Consumers increasingly seek strain-specific products that deliver the aroma and effects of the original plant.
  • Market differentiation — In crowded markets, live resin SKUs help brands stand out from commodity distillate offerings.
  • Full-spectrum appeal — The entourage effect narrative resonates with educated consumers who value terpene diversity.
  • Growing market share — Live resin vape sales continue to gain share from distillate in mature markets like California, Colorado, and Michigan.
  • Consumer loyalty — Live resin customers tend to be more brand-loyal than distillate buyers, who often shop primarily on price.
