OIL TYPE GUIDE

Cannabis Distillate

The industry’s workhorse — a highly refined, versatile cannabinoid oil that delivers consistent potency and clean vapor, making it the most widely used concentrate in the vape cartridge market.

What Is Cannabis Distillate?

Cannabis distillate is a refined concentrate that has been processed to isolate specific cannabinoids — most commonly THC (delta-9-tetrahydrocannabinol) or CBD (cannabidiol) — to extremely high purity levels, typically 85–95% total cannabinoid content. It is the most processed form of cannabis oil, stripped of nearly all plant matter, terpenes, lipids, and other compounds through a multi-stage refinement process.

The result is a thick, translucent oil that is nearly odorless and flavorless in its pure form. This blank-canvas quality makes distillate the most versatile concentrate in the industry — manufacturers can add terpenes (cannabis-derived or botanical) to create any flavor profile they want, giving them complete control over the end-product experience.

Distillate currently accounts for the majority of all cannabis vape cartridge fills sold in North America, valued for its consistency, hardware compatibility, and cost-effectiveness at scale.

Starting Material: Dried & Cured Cannabis

Unlike live resin, which uses fresh-frozen plant material, distillate production typically begins with dried and cured cannabis. After harvest, plants are hung in climate-controlled drying rooms for 10–14 days at 60–70°F with 55–65% relative humidity. This is followed by a curing period where trimmed buds are stored in sealed containers for 2–4 weeks, allowing chlorophyll to break down and moisture to equalize.

Because distillate production removes terpenes during refinement anyway, the quality of the starting material matters less for flavor (though it still affects yield). This means distillate can be economically produced from trim, shake, small buds, and other material that wouldn’t be suitable for premium flower sales — making efficient use of the full harvest.

This flexibility in starting material is one of the key economic advantages of distillate production. Brands can source lower-cost biomass and still produce a high-purity, consistent end product.

The Distillation Process

Producing distillate is a multi-stage refinement process. Each step progressively removes unwanted compounds until only the target cannabinoid remains at near-pharmaceutical purity.

Step 1: Initial Extraction

The first step is to produce a crude cannabis extract from the dried plant material. Several methods can be used:

Hydrocarbon extraction (butane/propane) produces a high-quality crude but requires explosion-proof facilities and solvent recovery systems. Ethanol extraction is more common for large-scale distillate operations — it’s safer, easier to scale, and less expensive. Cold ethanol wash at -40°F extracts cannabinoids while minimizing chlorophyll pickup. CO₂ extraction is also used, producing a clean crude through supercritical or subcritical CO₂ under high pressure.

The output of this stage is crude cannabis oil — a dark, viscous material containing 50–70% cannabinoids along with terpenes, chlorophyll, lipids, plant waxes, and other compounds. It requires significant further refinement before it becomes distillate.

Step 2: Winterization

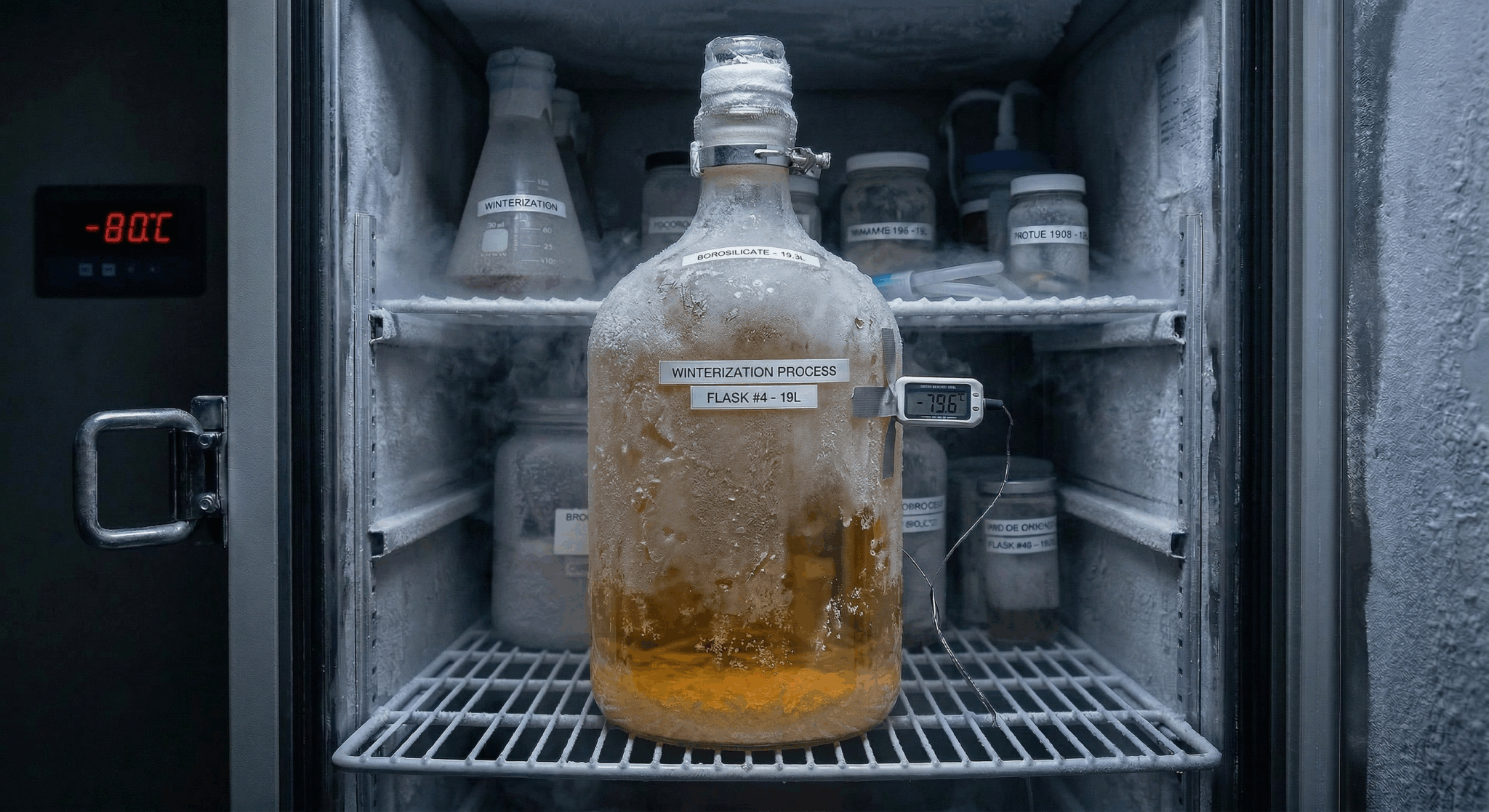

The crude extract is dissolved in ethanol and chilled to -40°F (-40°C) or colder for 24–48 hours. At these extreme temperatures, plant waxes, lipids, and fats solidify and drop out of solution as visible precipitates.

The mixture is then filtered through progressively finer media — typically starting with coarse paper filters and finishing with 0.5-micron membrane filters. This removes the solidified lipids while the cannabinoids and terpenes remain dissolved in the ethanol.

The filtered ethanol solution is then passed through a rotary evaporator (rotovap) or falling film evaporator to remove the ethanol under vacuum. The result is a cleaner, lighter-colored crude oil — still not pure enough to be called distillate, but free of the fats and waxes that would interfere with the next step.

Step 3: Decarboxylation

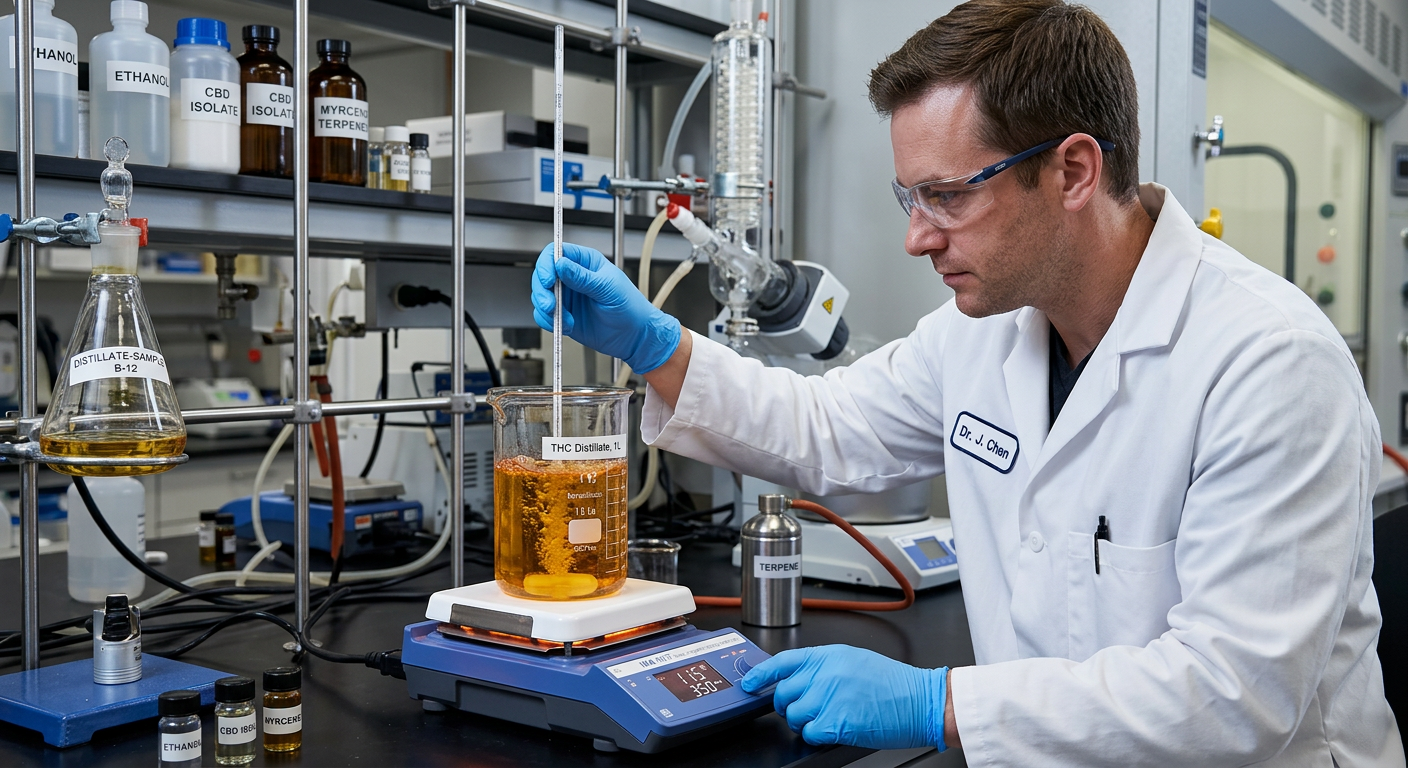

Before distillation, the crude oil undergoes decarboxylation — a heat-driven chemical reaction that converts the acidic forms of cannabinoids (THCA, CBDA) into their active, neutral forms (THC, CBD).

In the raw plant, cannabinoids exist primarily as carboxylic acids — THCA rather than THC. These acidic forms have a carboxyl group (COOH) attached to the molecule. Decarboxylation removes this carboxyl group as CO₂ gas, converting THCA → THC and CBDA → CBD. The reaction requires sustained heat: typically 220–250°F (104–121°C) for 30–45 minutes under vacuum.

This step is critical because the distillation process that follows separates compounds by boiling point. THCA and THC have different boiling points and molecular weights, so attempting to distill non-decarboxylated oil would result in poor separation and reduced purity.

Short-Path Distillation

The classic bench-scale method. Crude oil is placed in a round-bottom boiling flask sitting on a heated mantle. Under vacuum, cannabinoid vapors travel a short distance (just a few inches) to a glass condenser, where they cool, liquify, and drip into separate collection flasks. The operator manually monitors temperature and vacuum levels, switching collection flasks as different fractions come through.

Best for: Small-to-medium operations processing 1–5 liters per run. Lower equipment cost ($5,000–$30,000). Excellent for dialing in precise fraction cuts and producing small, high-quality batches. Most craft cannabis processors start here.

Wiped Film Distillation

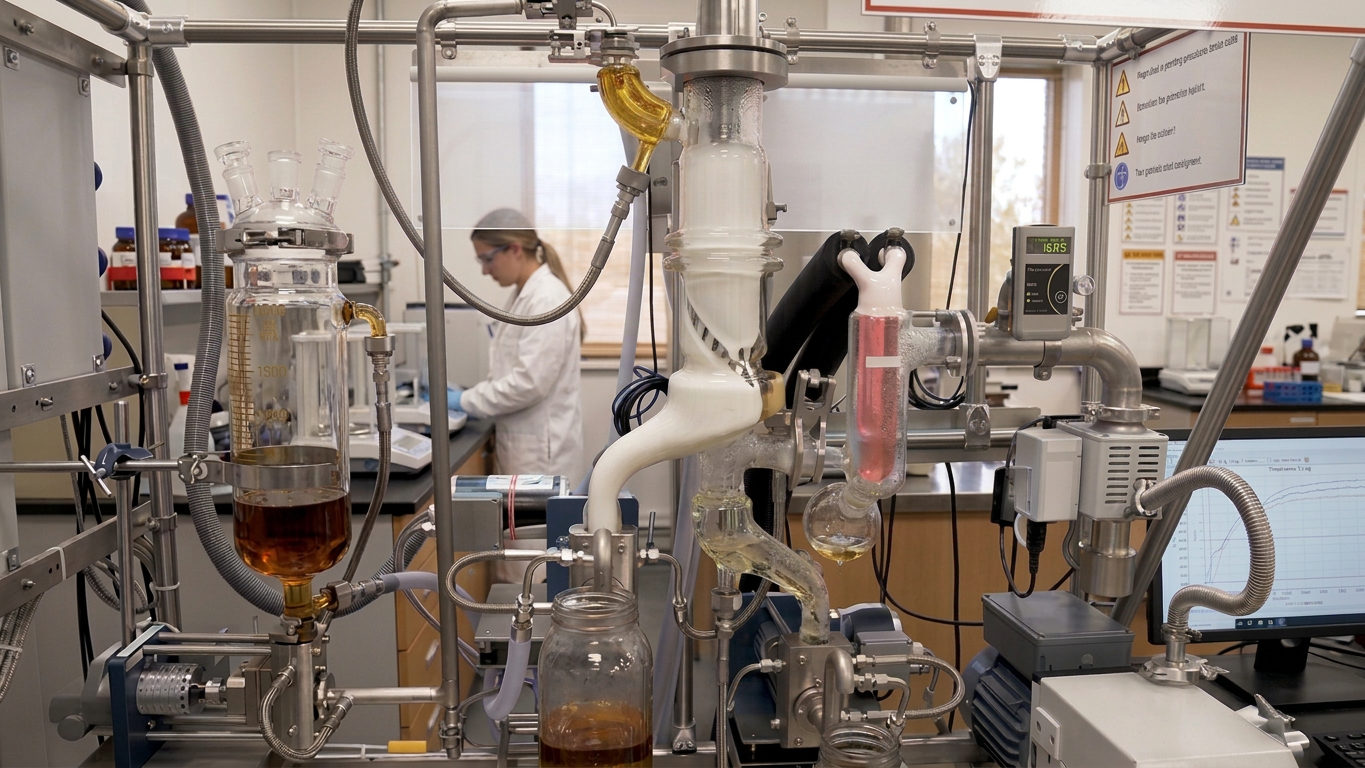

The industrial workhorse. Instead of a static boiling flask, wiped film systems use a vertical heated cylinder with a rotating wiper blade that spreads crude oil into an ultra-thin film across the hot inner surface. This thin film evaporates much faster and more uniformly than a pool of oil in a flask, and the continuous-feed design allows non-stop processing — crude goes in one end, distillate comes out the other.

Best for: Medium-to-large operations processing 10–100+ liters per day. Higher equipment cost ($50,000–$250,000+), but dramatically higher throughput. The thin-film contact also reduces thermal degradation since the oil spends less time at high temperature. Most commercial distillate on the market today is produced on wiped film systems.

Step 5: Terpene Reintroduction

Pure distillate is nearly odorless and flavorless — all the terpenes that gave the original plant its character were removed during extraction and distillation. To create a vapeable product with flavor and aroma, terpenes must be added back to the distillate, typically at 5–15% by weight.

Manufacturers have three terpene sourcing options:

• Cannabis-derived terpenes (CDTs) — Extracted from cannabis plants, these provide the most authentic flavor profiles. They’re expensive ($50–200+/mL) but increasingly demanded by premium brands.
• Botanically-derived terpenes (BDTs) — Isolated from non-cannabis plants (lemon for limonene, pine trees for pinene, etc.). More affordable and consistent batch-to-batch, but lack the full complexity of cannabis terpene blends.
• Hybrid blends — A mix of CDTs and BDTs, balancing authenticity with cost. This is the most common approach in the market today.

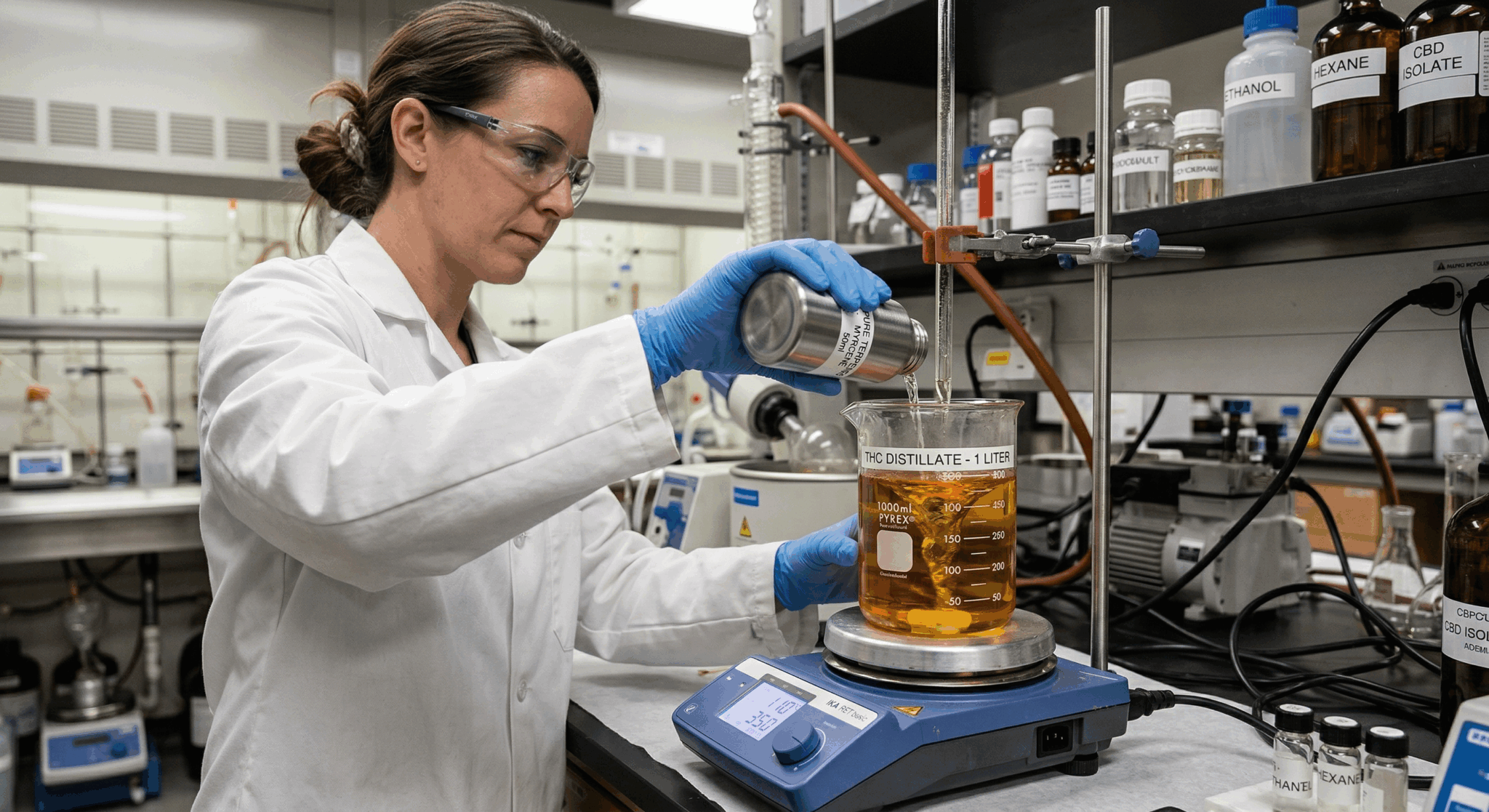

Terpene reintroduction is performed under gentle heat (100–120°F) with magnetic stirring to ensure homogeneous distribution throughout the distillate. The mixture is then tested for viscosity and flavor before filling into cartridges.

Quality Control & Testing

Before any distillate reaches a cartridge, it undergoes rigorous testing at certified third-party laboratories. Key tests include:

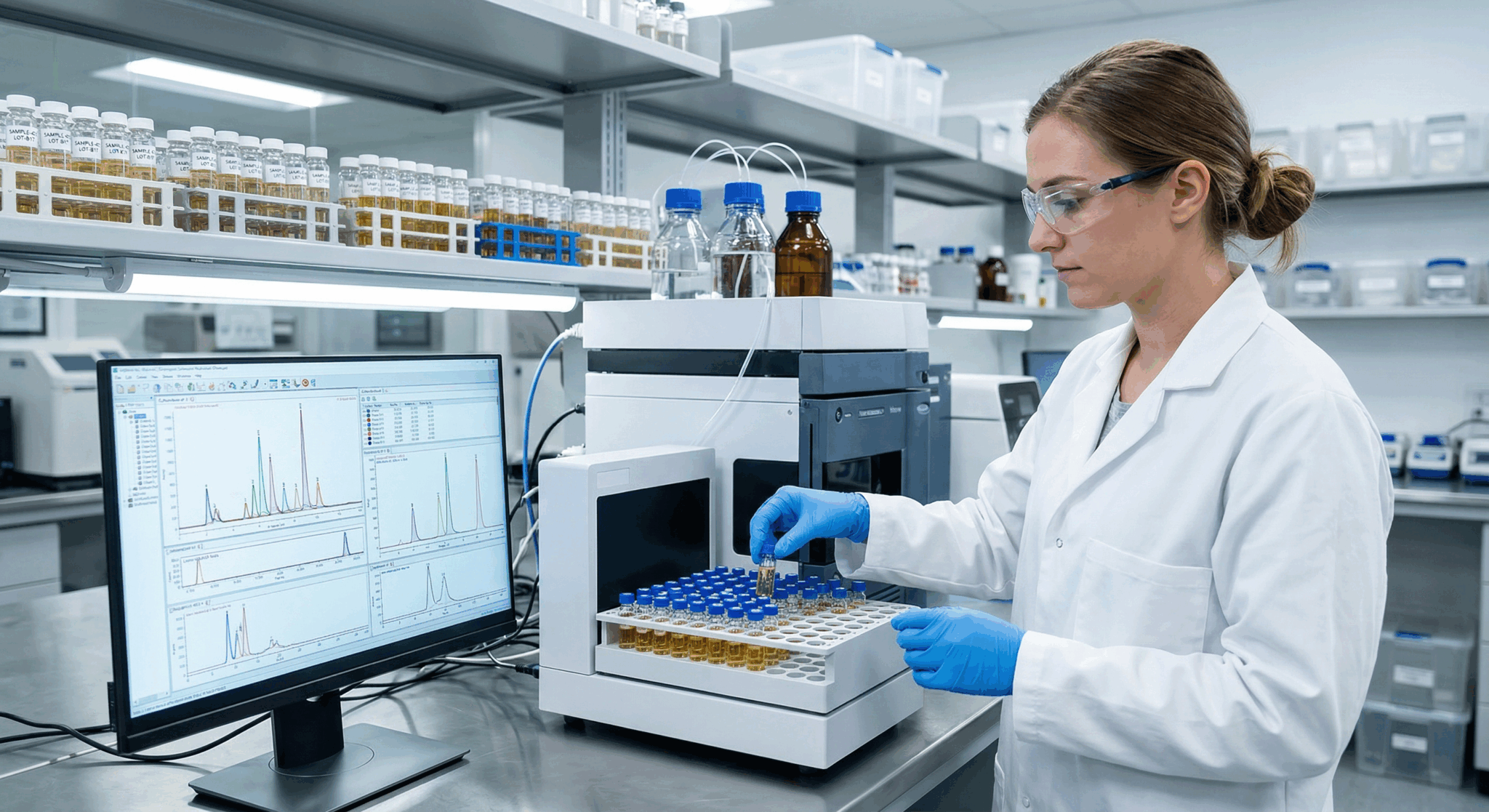

• Cannabinoid potency — HPLC (High-Performance Liquid Chromatography) measures exact percentages of THC, CBD, CBN, CBG, and other cannabinoids.
• Residual solvents — GC-MS (Gas Chromatography-Mass Spectrometry) confirms butane, propane, ethanol, and other solvents are below state-mandated limits (typically <500 ppm).
• Heavy metals — ICP-MS testing screens for lead, cadmium, mercury, and arsenic that could concentrate during extraction.
• Pesticides — LC-MS/MS screens for 60+ pesticide residues that could have been present on the original plant material.
• Microbial contamination — Tests for mold, yeast, E. coli, and Salmonella to ensure product safety.

Why Brands Choose Distillate

Despite the rise of live resin and rosin, distillate remains the backbone of the cannabis vape industry for good reasons:

• Consistency — Every batch can be formulated to exact specifications. Same potency, same viscosity, same flavor — batch after batch.
• Cost efficiency — Lower starting material costs (trim, shake) and scalable production mean better margins, especially at volume.
• Hardware flexibility — Works in every cartridge platform without compatibility concerns.
• Flavor customization — Brands can create any flavor profile by selecting specific terpene blends. Not limited to what the plant naturally produced.
• Regulatory compliance — High purity means fewer contaminants to worry about. Easier to pass state testing for pesticides, heavy metals, and microbials.
• Market accessibility — Lower price points make distillate cartridges accessible to price-sensitive consumers, driving higher volume.
